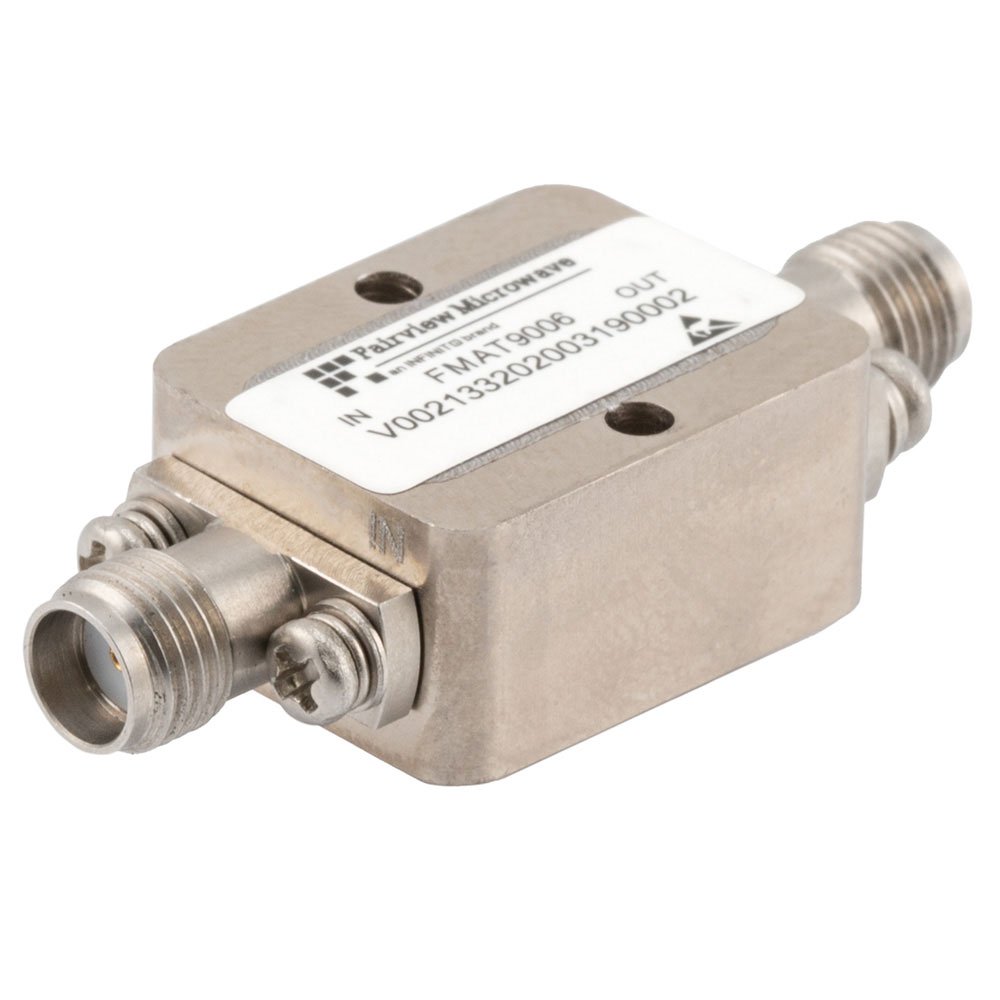

FMAT9006

Overview

The FMAT9006 is a gain equalizer designed for the 2 GHz to 6 GHz frequency range. It provides gain equalization of 1.5 dB to 2.5 dB with an insertion loss of 1 dB to 2 dB. The component supports an input power level of 30 dBm and utilizes SMA connectors for interfacing.

Feature Summary

• Provides linear equalization across the specified microwave frequency band
• Maintains signal integrity through controlled insertion loss characteristics
• Supports high-power operation suitable for demanding RF applications

Applications

• RF signal conditioning in communication systems
• Gain flattening in wideband amplifier chains
• Test and measurement equipment requiring stable amplitude response

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors to confirm current manufacturing status and technical specifications. Ensure that the SMA connector gender and cable assembly requirements match your system interface before procurement. Cross-reference the part number FMAT9006 with official manufacturer documentation to validate availability and compliance details.

Selection Notes

Select this component when a flat gain response is required between 2 GHz and 6 GHz. Consider the 1.5 dB to 2.5 dB equalization range and 30 dBm power handling capability against system linearity needs. Verify that the SMA interface aligns with existing board layouts and that the insertion loss budget accommodates the 1 dB to 2 dB specification.

Part Context

This device belongs to the Fairview Microwave portfolio of RF integrated circuits and modules. It functions as a specialized passive or active equalizer module within the broader category of wireless and RF components, distinct from general-purpose amplifiers or oscillators offered by the same manufacturer.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source data.
