Product Detailed Parameters
- Description：EQUALIZER SMA 6-18 GHZ 4 DB
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Linear Equalizer
- Frequency：6GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

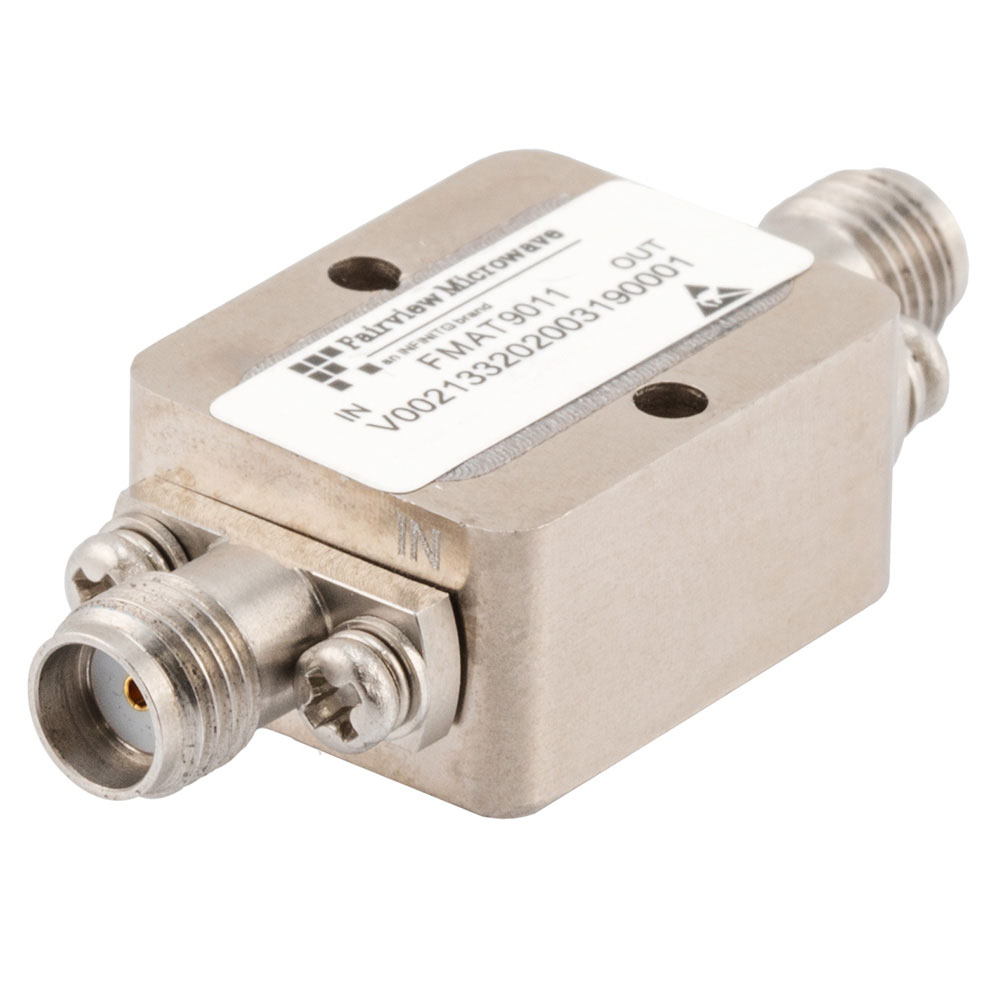

The FMAT9011 is a linear equalizer IC module manufactured by Fairview Microwave, designed for RF signal conditioning applications. It operates within a frequency range of 6 GHz to 18 GHz and features SMA connectors for interface connectivity. This component functions as a general-purpose equalizer intended to compensate for signal amplitude variations across the specified bandwidth. The module integrates the equalization circuitry into a standardized package suitable for integration into larger RF systems requiring precise signal integrity management in high-frequency environments.
Feature Summary
- Provides linear equalization capabilities for RF signal paths
- Operates effectively across the 6 GHz to 18 GHz frequency spectrum
- Utilizes SMA connectors for standard interface compatibility
Applications
- RF signal conditioning in communication systems
- Signal integrity compensation in test and measurement equipment
- General-purpose equalization in microwave circuits
Procurement Notes
Verify specific datasheet requirements and interface compatibility before procurement. Confirm that the SMA connector type matches system design specifications. Ensure the operating frequency range aligns with application needs. Check for any specific mounting or thermal management requirements detailed in official documentation. Validate supply chain availability through authorized distributors.
Selection Notes
Select this component when linear equalization is required between 6 GHz and 18 GHz. Consider the SMA interface for ease of integration. Evaluate if the general-purpose nature meets specific system performance criteria. Compare against other equalizers for bandwidth and insertion loss characteristics. Ensure the module form factor fits within the available space constraints of the target assembly.
Part Context
Fairview Microwave specializes in RF and microwave components, including amplifiers, cables, and modules. The FMAT9011 belongs to their lineup of RF integrated circuits and modules. These products are typically used in professional RF engineering contexts where signal fidelity is critical. The company provides specialized solutions for various frequency ranges and application scenarios.
