FMAT9012

Overview

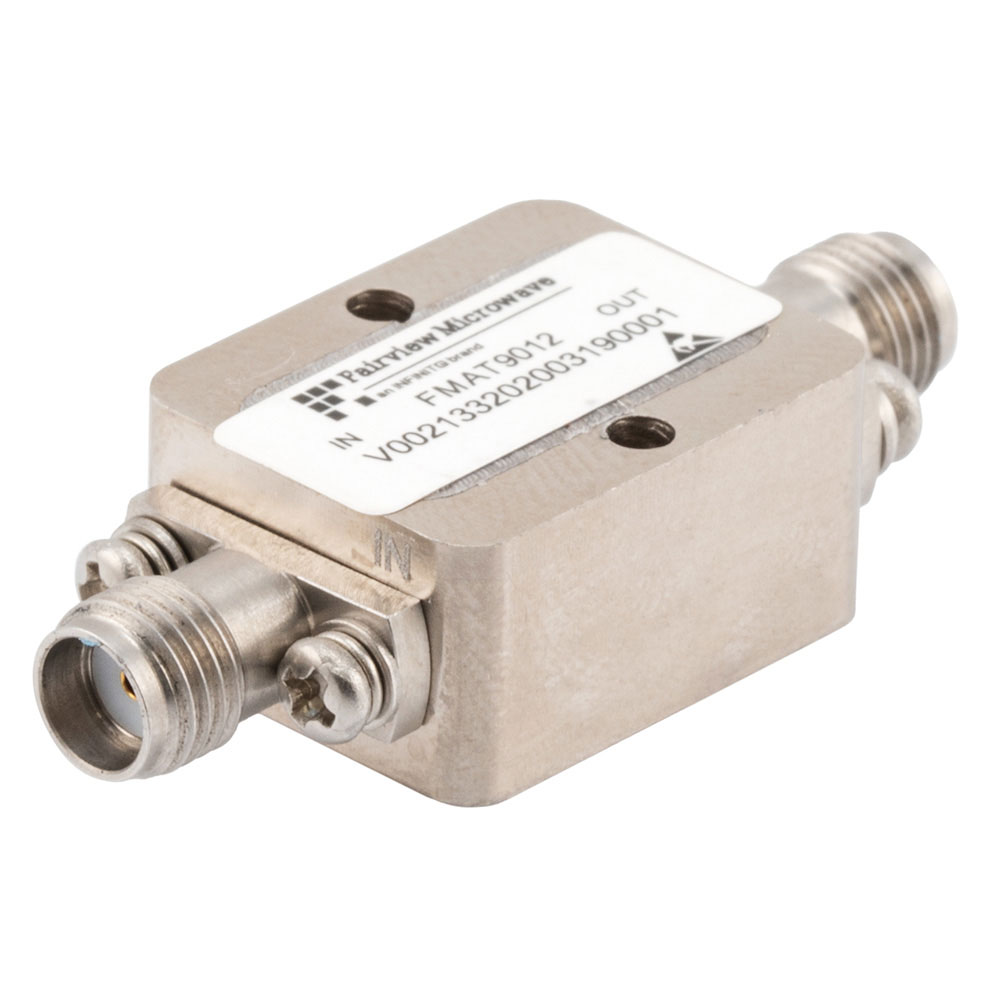

The FMAT9012 is a field replaceable SMA positive slope equalizer manufactured by Fairview Microwave. It operates within a frequency range of 6 GHz to 18 GHz. The component supports a maximum input power of +30 dBm. It utilizes an SMA interface for connectivity. This device is designed to provide signal equalization in high-frequency applications requiring precise amplitude compensation across the specified bandwidth.

Feature Summary

• Field replaceable design for simplified maintenance
• Positive slope equalization characteristics
• SMA interface compatibility

Applications

• High-frequency signal conditioning systems
• RF test and measurement equipment
• Communication infrastructure components

Procurement Notes

Verify the specific SMA connector gender and mating requirements against your system interface before procurement. Confirm that the operating environment remains within the thermal limits defined in the official datasheet. Ensure that the +30 dBm maximum pin rating is not exceeded during operation to prevent component damage. Cross-reference the field replaceable aspect with your maintenance protocols.

Selection Notes

Select this component when positive slope equalization is required between 6 GHz and 18 GHz. The SMA interface dictates compatibility with standard SMA-connected systems. Consider the field replaceable nature if system uptime and ease of maintenance are critical factors. Verify that the power handling capabilities align with your system's maximum output levels.

Part Context

This equalizer belongs to Fairview Microwave's RF signal conditioning portfolio. It addresses signal integrity issues in microwave frequencies. The SMA interface ensures broad interoperability with existing RF infrastructure. Its field replaceable construction supports long-term operational reliability in demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
