FMAT9018

Overview

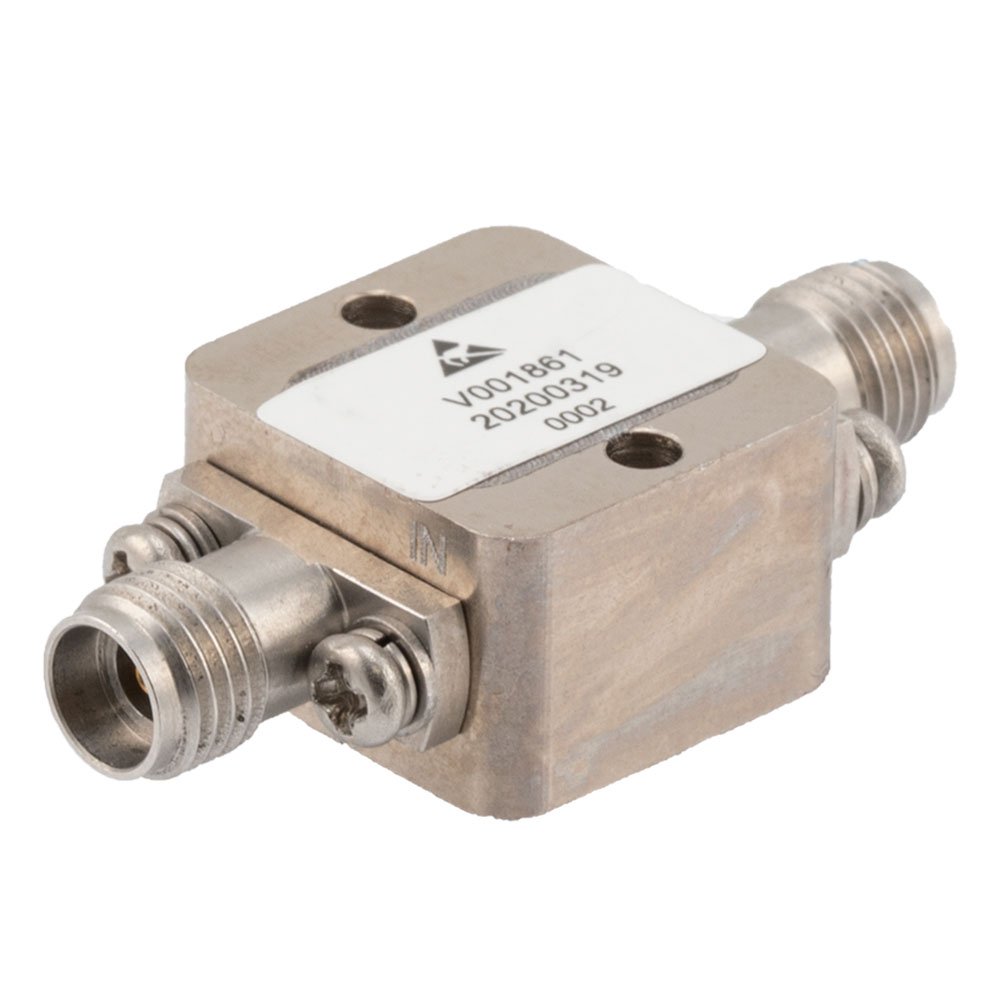

The FMAT9018 is a 2.92mm equalizer module designed for high-frequency applications spanning from 26.5 GHz to 40 GHz. It provides a nominal 5 dB gain response within this millimeter-wave range. The component utilizes a single 2.92mm interface configuration, ensuring compatibility with standard test and measurement setups requiring precise signal conditioning at these elevated frequencies.

Feature Summary

• Provides frequency compensation through a 5 dB equalization profile
• Operates effectively across the 26.5 GHz to 40 GHz spectrum
• Features a compact 2.92mm connector interface for direct integration

Applications

• Millimeter-wave test and measurement systems
• Signal integrity correction in high-frequency circuits
• Vector network analyzer calibration extensions

Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to procurement. Confirm that the 2.92mm interface matches the host system requirements. Ensure environmental ratings align with the intended operational conditions. Check for any specific handling instructions regarding ESD sensitivity common to millimeter-wave components.

Selection Notes

Select this component when signal attenuation or frequency response flatness requires correction between 26.5 GHz and 40 GHz. The 2.92mm interface dictates compatibility with existing connector infrastructure. Consider the physical size and mounting requirements for integration into dense RF assemblies.

Part Context

Fairview Microwave produces specialized RF and microwave components for demanding environments. This equalizer belongs to their portfolio of precision modules designed to maintain signal fidelity. The product line focuses on high-frequency performance where standard cables may introduce unacceptable loss or distortion.

FAQ

What is the operating frequency range?

The device operates from 26.5 GHz to 40 GHz.

What is the connector type?

It uses a 2.92mm connector interface.
