FMAT9021

Overview

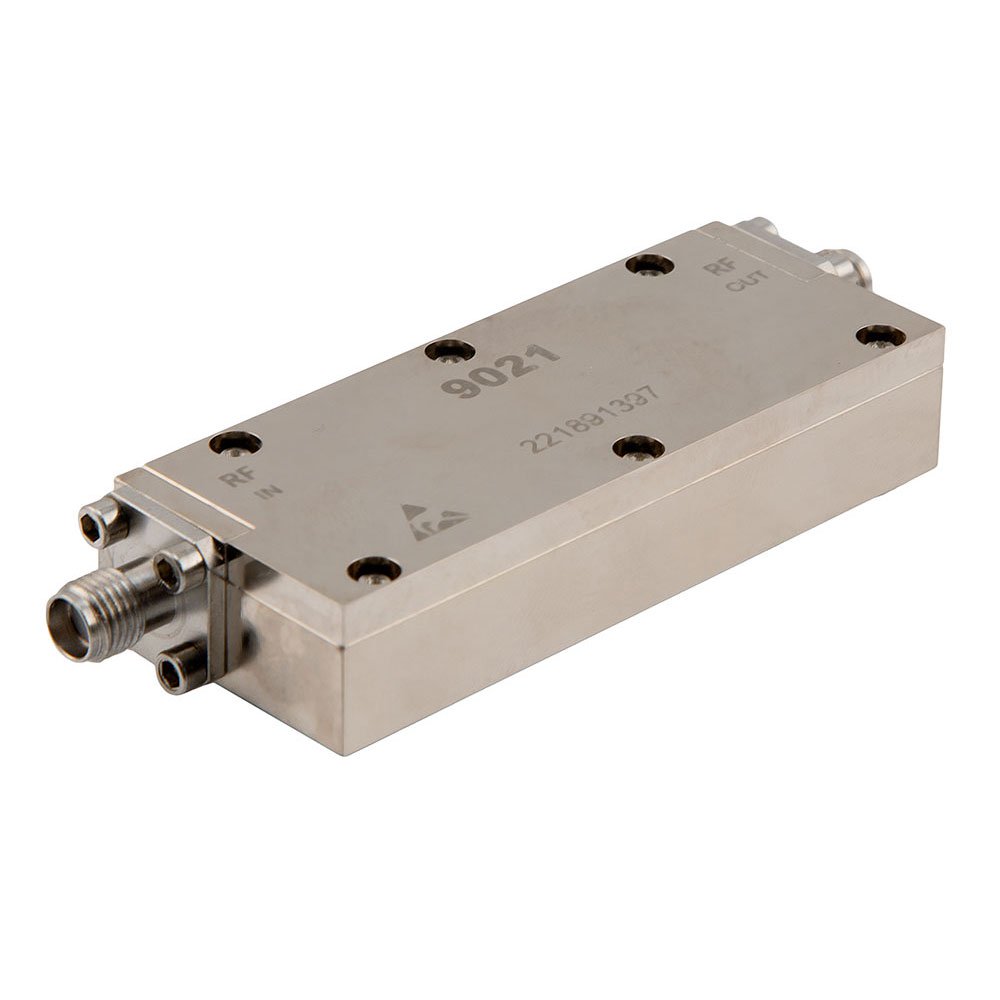

The FMAT9021 is a negative slope equalizer manufactured by Fairview Microwave, designed for RF applications operating between 2 GHz and 6 GHz. It provides a fixed equalizing value of 4 dB to compensate for signal attenuation characteristics in high-frequency circuits. The component exhibits a low insertion loss of 0.6 dB, ensuring minimal signal degradation during transmission. This device is engineered to maintain signal integrity across its specified frequency range, making it suitable for systems requiring precise amplitude correction.

Feature Summary

• Provides negative slope equalization to counteract frequency-dependent signal loss
• Delivers a fixed 4 dB equalizing value for consistent performance
• Maintains low insertion loss of 0.6 dB to preserve signal strength

Applications

• RF signal conditioning in communication systems
• Compensation for cable or filter attenuation in test equipment
• Signal integrity enhancement in microwave circuits

Procurement Notes

Verify the specific part number FMAT9021 against official Fairview Microwave documentation to confirm technical specifications. Ensure compatibility with system requirements regarding frequency range and impedance. Consult authorized distributors for current availability and lead times, as stock levels may vary. Confirm that the component meets all necessary regulatory standards for your intended application before procurement.

Selection Notes

Select the FMAT9021 when a fixed negative slope equalization is required within the 2 GHz to 6 GHz band. Consider its 4 dB equalizing value and 0.6 dB insertion loss relative to system budget constraints. Evaluate whether the fixed characteristic suits the application compared to adjustable alternatives. Ensure the component's physical interface and mounting requirements align with the design layout.

Part Context

Fairview Microwave specializes in RF and microwave components, including cables, connectors, and active/passive devices. The FMAT9021 belongs to their lineup of equalizers designed to manage signal amplitude variations. These components are typically used in conjunction with other RF hardware to optimize system performance in demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMAT9021. Verify if other models from Fairview Microwave offer similar fixed equalization values and frequency ranges. Cross-reference specifications with alternative manufacturers only if exact matches are found in official datasheets.
