FMAT9022

Overview

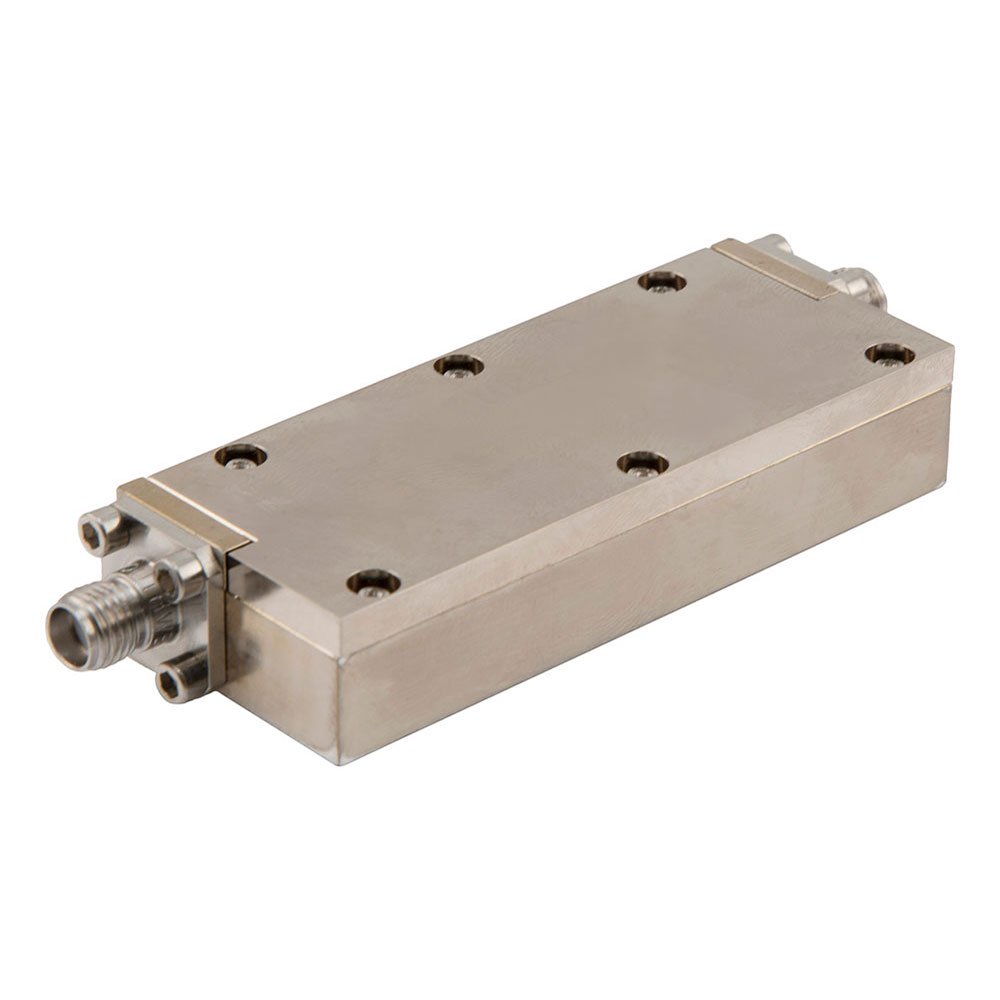

The FMAT9022 is a linear equalizer module manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 6 GHz and provides an insertion loss compensation of 6 dB. The component utilizes SMA connectors for interface connectivity. This module is designed for general-purpose RF applications requiring signal amplitude correction across the specified microwave band.

Feature Summary

• Provides 6 dB equalization within the 2-6 GHz operational bandwidth
• Utilizes SMA connector interfaces for standard integration

Applications

• RF signal path compensation
• General purpose microwave testing setups
• Communication system amplitude correction

Procurement Notes

Verify the specific datasheet version and electrical tolerances directly with Fairview Microwave or authorized distributors before procurement. Confirm that the SMA connector gender and mating requirements align with existing system infrastructure. Ensure environmental specifications meet the intended deployment conditions.

Selection Notes

Select this module when a fixed 6 dB gain profile is required between 2 GHz and 6 GHz. Compare against adjustable attenuators if variable control is needed. Verify impedance matching and power handling capabilities relative to the source signal levels in the target application circuit.

Part Context

This component belongs to Fairview Microwave's line of RF miscellaneous integrated circuits and modules. It serves as a passive or active correction element within broader RF subsystems, distinct from their cable assemblies and antenna products, focusing on signal conditioning rather than transmission or radiation.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate generic equalizer modules with identical SMA interfaces and 2-6 GHz coverage only after verifying exact electrical parameter compatibility.
