FMAT9024

Overview

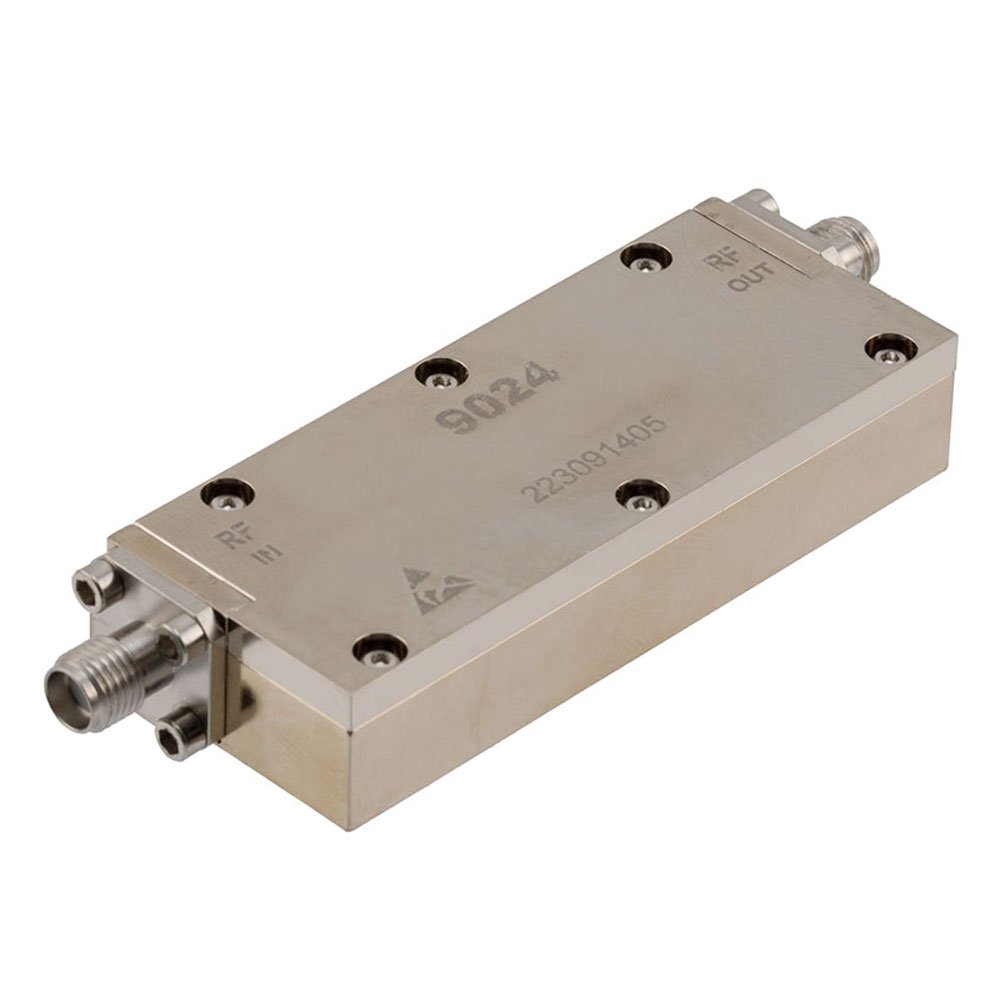

The FMAT9024 is a passive RF equalizer manufactured by Fairview Microwave, designed for signal conditioning within the 2 GHz to 6 GHz frequency range. It provides a fixed attenuation of 9 dB to compensate for frequency-dependent losses in transmission lines or system components. The device utilizes SMA connectors for interfacing and is constructed to meet RoHS compliance standards. This component serves as a specialized module for maintaining signal integrity across its specified operational bandwidth.

Feature Summary

• Provides fixed 9 dB attenuation for signal level adjustment
• Operates effectively within the 2 GHz to 6 GHz frequency spectrum
• Utilizes SMA connector interface for standard integration

Applications

• RF signal path compensation
• Frequency response flattening in test setups
• Signal conditioning in wireless communication systems

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the SMA connector gender and cable assembly requirements match the target application interface. Ensure the operating environment remains within the specified 2 GHz to 6 GHz range to maintain the stated 9 dB attenuation performance characteristics.

Selection Notes

Select this component when a precise 9 dB loss is required between 2 GHz and 6 GHz. Consider the SMA interface compatibility with existing circuitry. Evaluate thermal management needs, as passive equalizers dissipate power. Compare against active solutions if gain is also required, noting this unit provides only attenuation.

Part Context

This part belongs to the Fairview Microwave RF miscellaneous integrated circuits and modules category. It functions as a passive equalizer, distinct from amplifiers or splitters. The product line focuses on signal conditioning components for high-frequency applications, supporting system stability through controlled attenuation profiles.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence regarding attenuation value (9 dB) and frequency range (2-6 GHz) if considering alternative manufacturers.
