FMAT9028

Overview

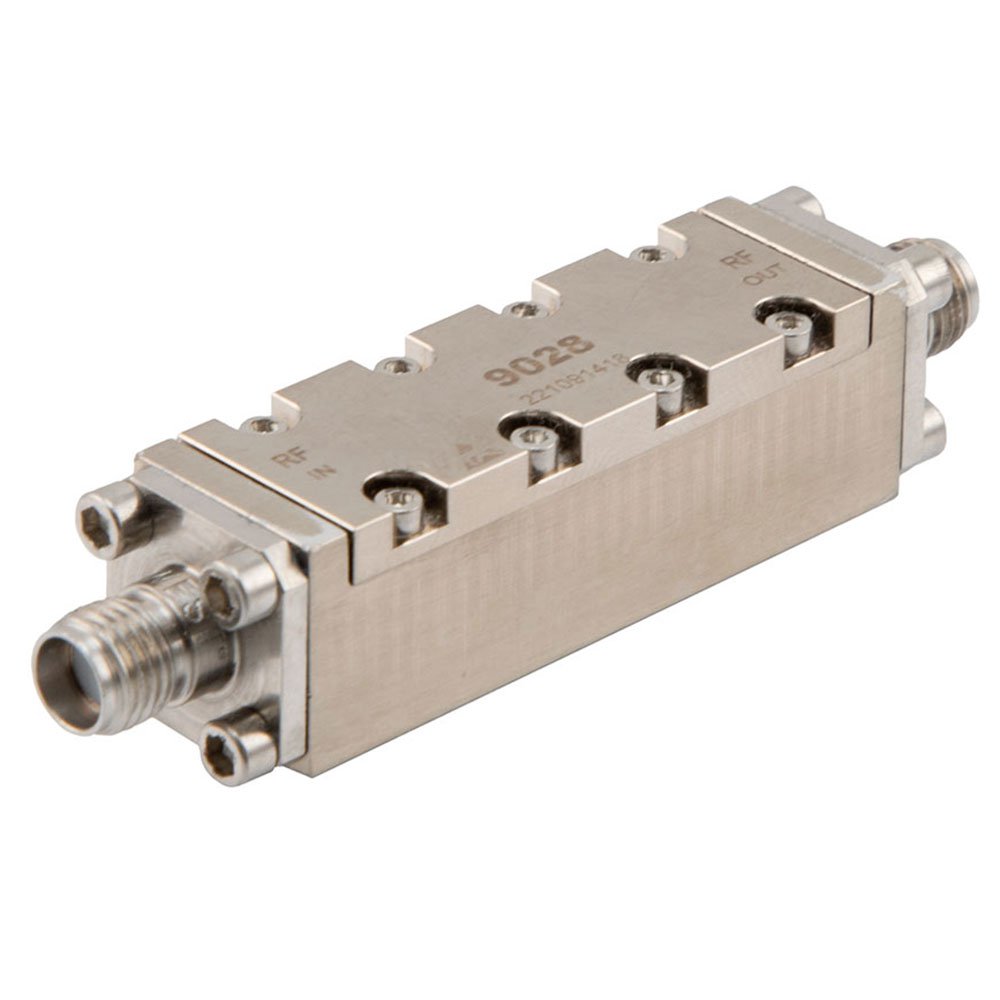

The FMAT9028 is a linear equalizer manufactured by Fairview Microwave, designed for general-purpose RF applications. It operates within a frequency range of 4 GHz to 12 GHz and features SMA connectors. The component provides a fixed equalizing value of 6 dB with a maximum insertion loss of 0.5 dB. It supports a maximum input power (PIN) of 250 mW and maintains a 50 Ohm impedance. Packaged in a bag, this active product serves as a negative slope equalizer for signal conditioning.

Feature Summary

• Provides a fixed 6 dB equalizing value for signal adjustment
• Operates effectively across the 4 GHz to 12 GHz frequency spectrum
• Features low insertion loss of 0.5 dB for efficient signal transmission

Applications

• RF signal conditioning in microwave systems
• Negative slope equalization in communication links
• General-purpose linear equalization modules

Procurement Notes

Verify the specific datasheet version and connector polarity before integration. Confirm that the 250 mW maximum input power rating aligns with your system's signal levels to prevent damage. Ensure SMA interface compatibility with existing circuitry. Check for RoHS compliance status if required by your manufacturing standards. Validate the 4-12 GHz operational range against your application's frequency requirements.

Selection Notes

Select the FMAT9028 when a fixed 6 dB correction is needed within the 4-12 GHz band. Its low 0.5 dB insertion loss makes it suitable for sensitive RF chains. The SMA interface ensures broad compatibility with standard test and measurement equipment. Consider its 250 mW power handling limit for high-power environments. This component is ideal for correcting negative slope characteristics in wideband signals.

Part Context

Fairview Microwave specializes in high-quality RF, microwave, and mmWave components. The FMAT9028 falls under their RF ICs and Modules category, specifically as a linear equalizer. This product line supports diverse electronic applications requiring precise signal management. The manufacturer offers extensive SKU availability and global shipping capabilities for these specialized passive and active components.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMAT9028.
