Product Detailed Parameters
- Description：EQUALIZER SMA 6-18 GHZ 6 DB
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Linear Equalizer
- Frequency：6GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

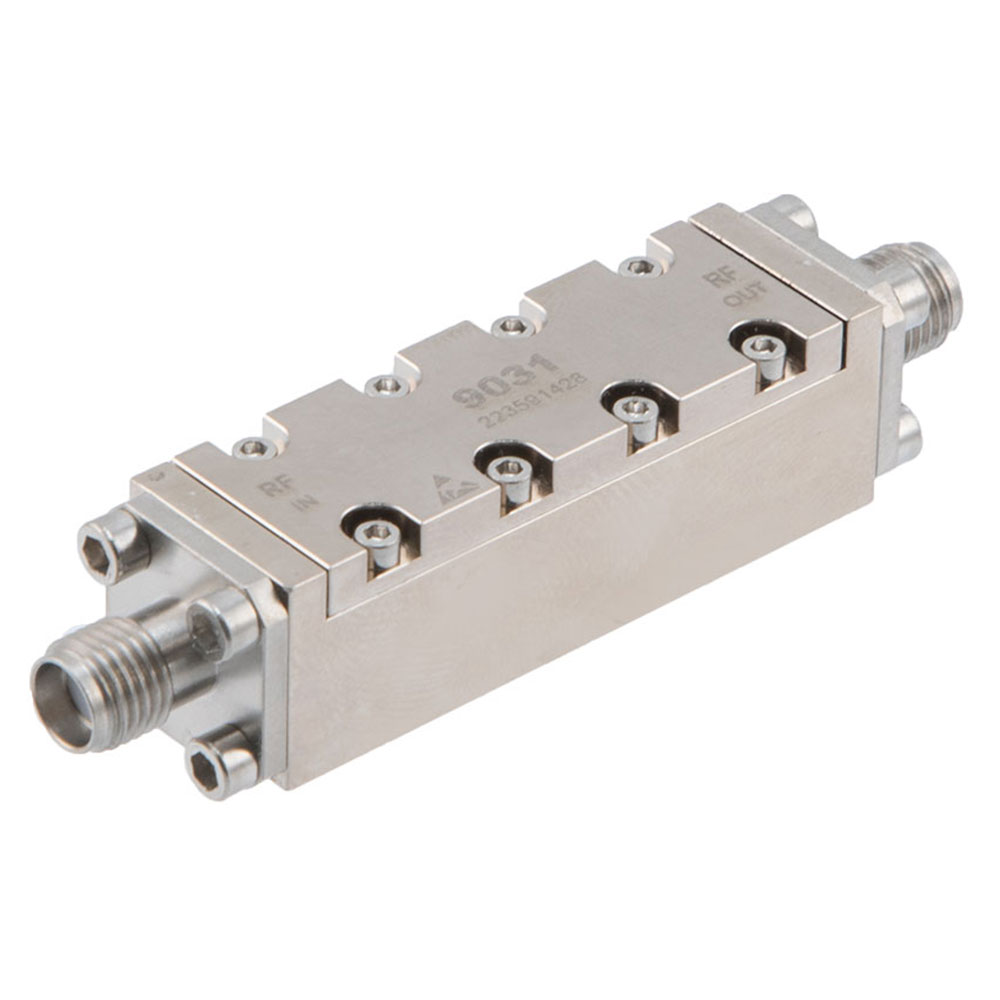

The FMAT9031 is a negative slope equalizer manufactured by Fairview Microwave, designed for RF applications within the 6 GHz to 18 GHz frequency range. This component provides a fixed equalizing value of 6 dB with a maximum insertion loss of 0.7 dB. It features SMA connectors and supports a maximum input power of 150 mW. The device is classified as a general-purpose linear equalizer suitable for signal conditioning in high-frequency systems.
Feature Summary
- Provides fixed 6 dB negative slope equalization
- Operates across 6 GHz to 18 GHz frequency band
- Features low insertion loss of 0.7 dB
- Utilizes SMA connector interface
Applications
- RF signal conditioning in communication systems
- Compensation for frequency-dependent losses in test equipment
- Linear equalization in microwave circuits
Procurement Notes
Verify the specific datasheet version and connector orientation (SMA male/female) prior to ordering. Confirm that the 150 mW maximum input power rating aligns with your system's signal levels. Ensure mechanical compatibility with existing SMA interfaces. Check for any RoHS compliance documentation if required for your manufacturing standards. Validate the 6 dB fixed value meets your specific equalization requirements.
Selection Notes
Select this component when a fixed negative slope correction is required between 6 GHz and 18 GHz. Consider the 0.7 dB insertion loss impact on overall system gain. Ensure the SMA interface matches your board or cable assembly. Evaluate if the 150 mW power handling is sufficient for your application. Compare against adjustable equalizers if variable compensation is needed.
Part Context
The FMAT9031 belongs to Fairview Microwave's line of RF miscellaneous ICs and modules, specifically categorized under linear equalizers. It serves as a passive component for managing signal integrity in high-frequency environments. This part is distinct from amplifiers or active mixers, focusing solely on frequency response shaping.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence carefully if considering alternatives from other manufacturers.
