FMAT9036

Overview

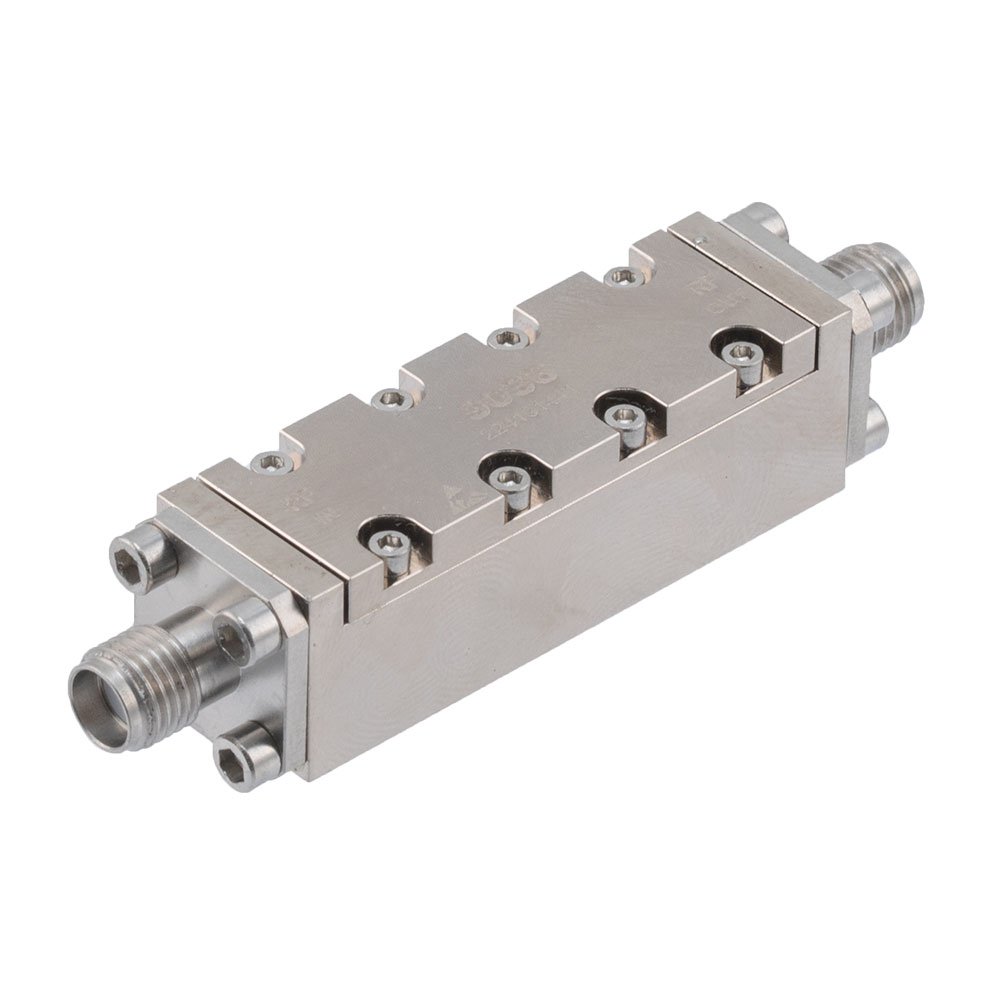

The FMAT9036 is a negative slope equalizer manufactured by Fairview Microwave, designed for RF applications within the 12 GHz to 18 GHz frequency range. It provides a fixed equalizing value of 7 dB with a typical insertion loss of 0.65 dB. The component features SMA connectors and maintains a Voltage Standing Wave Ratio (VSWR) of 1.7:1. It operates reliably across a temperature range from -55°C to +95°C, ensuring stability in demanding environments.

Feature Summary

• Provides negative slope equalization to compensate for signal attenuation variations.

Applications

• RF system linearization
• Signal integrity maintenance in high-frequency circuits

Procurement Notes

Verify the specific datasheet version for the FMAT9036 to confirm current manufacturing status and detailed electrical tolerances. Ensure compatibility with existing SMA interfaces and operating temperature requirements before integration. Cross-reference official Fairview Microwave documentation for any updates regarding RoHS compliance or material specifications.

Selection Notes

Select this component when a fixed 7 dB negative slope correction is required between 12 GHz and 18 GHz. Consider the 0.65 dB insertion loss impact on overall system gain. Verify that the SMA connector type matches the board layout and that the operating temperature range aligns with the environmental conditions of the application.

Part Context

This part belongs to the category of RF miscellaneous ICs and modules, specifically functioning as a linear equalizer. It addresses signal distortion issues in microwave frequencies. The design focuses on maintaining signal fidelity over a defined bandwidth using passive equalization techniques.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
