Product Detailed Parameters
- Description：EQUALIZER SMA 18-26.5 GHZ 4 DB
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Linear Equalizer
- Frequency：18GHz ~ 26.5GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

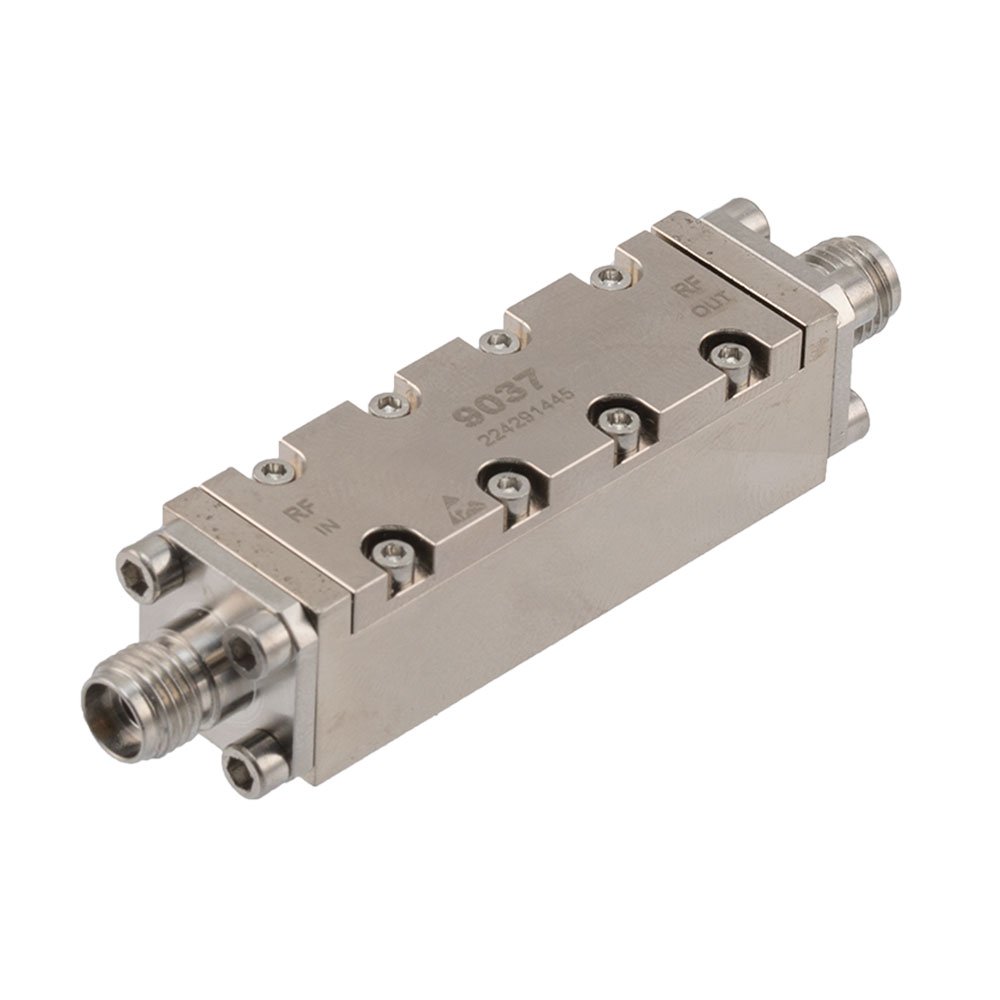

The FMAT9037 is a negative slope equalizer manufactured by Fairview Microwave, designed for RF interconnect applications. It operates within a frequency range of 18 GHz to 26 GHz and provides a fixed equalizing value of 4 dB. The component features SMA connectors and exhibits an insertion loss of 0.9 dB. It supports a maximum input power of 250 mW. This attenuator is engineered to compensate for signal variations in high-frequency systems.
Feature Summary
- Provides fixed negative slope equalization to correct frequency response deviations
- Utilizes SMA connector interface for reliable RF interconnection
- Engineered for stable operation across the 18 GHz to 26 GHz spectrum
Applications
- High-frequency test and measurement setups requiring signal conditioning
- Microwave communication systems needing amplitude correction
- RF circuit calibration and characterization environments
Procurement Notes
Verify part number FMAT9037 against official Fairview Microwave documentation to confirm specifications. Ensure compatibility with existing SMA interfaces and system power limits. Check current availability status through authorized distributors as supply conditions may vary. Confirm operating temperature ranges meet application requirements before procurement.
Selection Notes
Select this component when precise negative slope equalization is required between 18 GHz and 26 GHz. Consider the 4 dB fixed value and 0.9 dB insertion loss characteristics. Verify that the 250 mW maximum power rating aligns with system signal levels. Ensure SMA connector type matches the design architecture.
Part Context
This component belongs to the category of connectorized attenuators and equalizers produced by Fairview Microwave. It serves as a specialized passive device for managing signal integrity in microwave frequencies. The product line focuses on providing precise RF performance for professional and industrial applications.
Replacement Considerations
Consult Fairview Microwave technical resources for verified substitute part numbers. Ensure any replacement maintains identical frequency range, connector type, and equalization characteristics.
