FMBB-33ME-2040

Power Line Filter Modules Overview

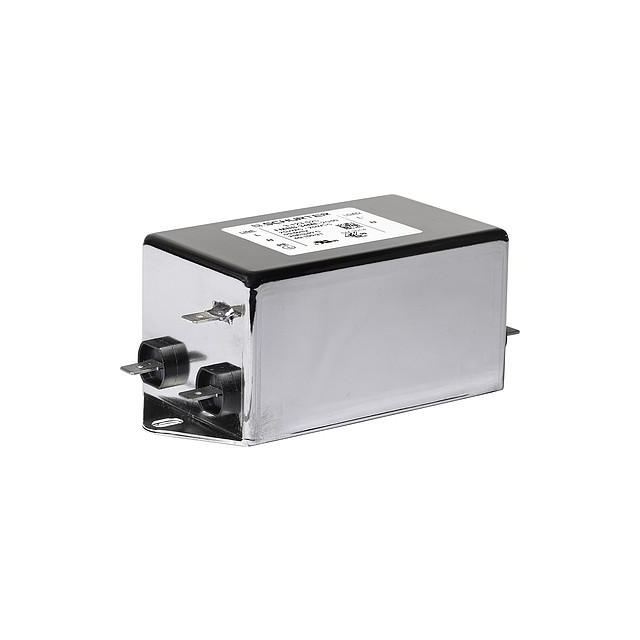

The SCHURTER FMBB-33ME-2040 is a single-phase, two-stage power line filter from the FMBB series. It features a chassis mount design with screw termination for secure installation. The unit supports voltage ratings of 125 VAC and 250 VAC with a current rating of 20 A. Operating at frequencies of 50 Hz and 60 Hz, it provides broadband attenuation to reduce electromagnetic interference. Key electrical specifications include a leakage current of 250 µA. The component holds UL, CSA, VDE, and EN compliance certifications.

Power Line Filter Modules Feature Summary

• Two-stage broadband attenuation for effective noise reduction
• Chassis mount construction with screw terminals
• Compliant with major international safety standards

Power Line Filter Modules Applications

• Industrial equipment requiring EMI suppression
• Medical devices needing certified power filtering
• General purpose AC power line conditioning

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Schurter documentation to confirm current availability and exact technical specifications. Ensure that the required certifications such as UL, CSA, VDE, and EN are valid for your target market. Cross-reference datasheet parameters including voltage, current, and leakage current with system requirements before procurement.

Power Line Filter Modules Selection Notes

Select this model when a single-phase, two-stage filter is required for high-current applications up to 20 A. The chassis mount style and screw termination suit panel integration. Verify that the 250 µA leakage current meets safety limits for sensitive medical or consumer applications. Confirm compatibility with 125 VAC and 250 VAC systems operating at 50/60 Hz.

Power Line Filter Modules Part Context

This component belongs to the FMBB series, which offers two-stage broadband attenuation for single-phase applications. The series ranges from 8 A to 25 A. The FMBB-33ME-2040 specifically addresses the 20 A segment, providing robust EMI/EMC solutions for industrial and medical environments where reliable power line filtering is critical.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Schurter documentation for potential cross-references or updated series replacements.
