FMBB-34MB-3630

Power Line Filter Modules Overview

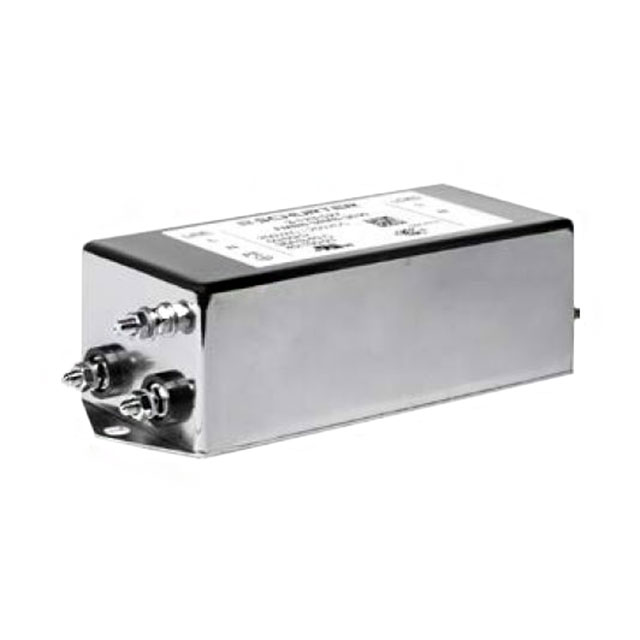

The SCHURTER FMBB-34MB-3630 is a single-phase, two-stage power line filter module from the FMBB EP series. It supports nominal AC voltages of 125 VAC and 250 VAC with a rated current of 36 A. The unit features chassis mount installation via threaded M4 posts. Operating frequencies are 50 Hz and 60 Hz. Compliance includes UL, CSA, VDE, and EN standards.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with threaded post termination
• Dual voltage rating capability for global compatibility

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Medical equipment EMI reduction
• Test and measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific leakage current requirements against the official datasheet, as values vary within the series. Confirm that the M4 threaded post termination matches your chassis mounting hardware. Ensure the 36 A continuous current rating exceeds your application's peak load to maintain safety margins under thermal stress conditions.

Power Line Filter Modules Selection Notes

Select this model when high current capacity is required alongside strict EMI attenuation. Compare leakage current specifications against safety regulations for medical or sensitive electronic environments. Verify that the physical dimensions and mounting hole patterns align with the available chassis space in the final assembly design.

Power Line Filter Modules Part Context

This component belongs to the FMBB EP series, designed for robust power line filtering in demanding industrial environments. The series offers various current ratings and voltage options while maintaining consistent mechanical mounting interfaces. It serves as a critical interface between the power source and sensitive downstream electronics.

Power Line Filter Modules Replacement Considerations

Direct substitutes include FMBB-36MB-3630 for identical electrical performance. Check FMBB-34MB-3630-DG for potential documentation variations. Verify mechanical fit and terminal compatibility before swapping any alternative part numbers.
