FMBB-3609-0340

Power Line Filter Modules Overview

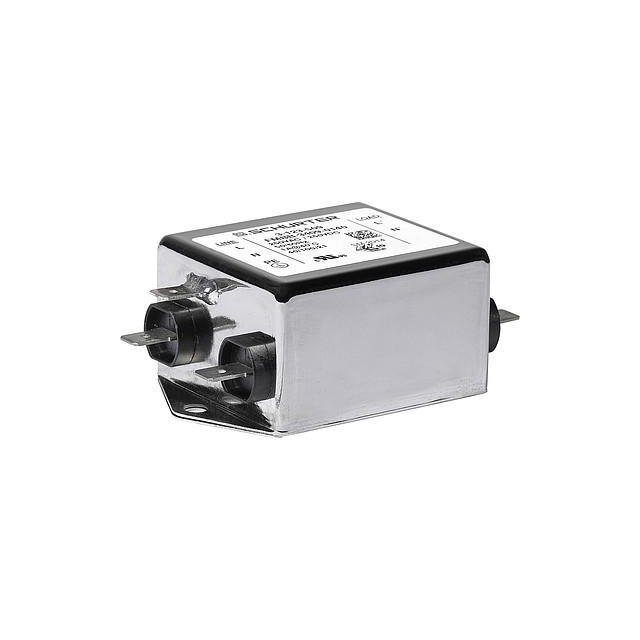

The FMBB-3609-0340 is a single-phase, two-stage EMC/EMI line filter manufactured by Schurter Inc. It supports a maximum current of 3 A and operates at voltage ratings of 125 VAC and 250 VAC with a frequency of 50/60 Hz. The component utilizes quick connect terminals for circuit attachment and features a compact design suitable for space-constrained applications.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Compact form factor designed for efficient PCB integration
• Quick connect terminal interface for simplified assembly

Power Line Filter Modules Applications

• Consumer electronics power supply input stages
• Industrial control systems requiring EMI suppression
• Medical equipment power interfaces

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact capacitance and inductance values required for your circuit simulation. Ensure the quick connect terminal pitch matches your PCB footprint. Confirm RoHS compliance status if restricted substances are prohibited in your manufacturing process.

Power Line Filter Modules Selection Notes

Select this component when high attenuation is needed in a small footprint. Compare leakage current specifications against safety standards for medical or sensitive instrumentation. Verify that the 3 A rating accommodates peak inrush currents without saturation.

Power Line Filter Modules Part Context

This part belongs to the FMBB series, which focuses on compact, two-stage filters for single-phase applications. It complements Schurter's broader portfolio of passive components including fuses and connectors, targeting markets where size and performance balance are critical.

Power Line Filter Modules Replacement Considerations

Check pin compatibility and mounting style before substituting. Verify that alternative parts meet the same 3 A current and 250 VAC voltage ratings. Ensure equivalent attenuation characteristics are maintained for regulatory compliance.

Power Line Filter Modules FAQ

What is the terminal type for the FMBB-3609-0340?

The component uses quick connect terminals for circuit attachment.

Is this filter suitable for 50 Hz and 60 Hz operations?

Yes, the FMBB-3609-0340 is rated for both 50 Hz and 60 Hz operating frequencies.
