FMBC-0932-2510

Power Line Filter Modules Overview

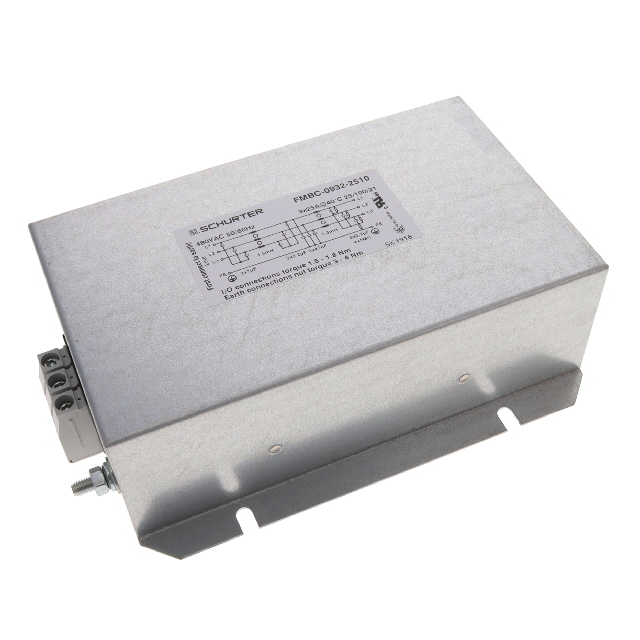

The FMBC-0932-2510 is a three-phase EMC/EMI line filter from the Schurter FMBC Neo series, rated for 25 A and 480 V AC at 50/60 Hz. It features a two-stage filtering architecture with chassis mount installation and terminal block connections. Key electrical parameters include a leakage current of 0.5 mA and an operating temperature range typically spanning -25°C to +100°C. The unit complies with IEC, UL, and VDE standards, ensuring effective noise suppression in industrial power distribution systems.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Low leakage current design suitable for sensitive equipment protection
• Robust chassis mounting configuration with secure terminal block connections

Power Line Filter Modules Applications

• Industrial motor drive systems
• Three-phase power distribution panels
• Manufacturing automation equipment
• Heavy machinery power supplies

Power Line Filter Modules Procurement Notes

Verify that the specific application voltage matches the 480 V AC rating and confirm the required current capacity does not exceed 25 A. Ensure the installation environment supports the specified operating temperature range. Confirm compliance requirements align with local regulatory standards such as UL or VDE before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this model when high-performance noise attenuation is required for three-phase delta configurations. The two-stage design offers superior filtering compared to single-stage alternatives. Consider the physical dimensions and terminal block interface compatibility during system integration planning to ensure proper mechanical fit and electrical connectivity.

Power Line Filter Modules Part Context

This component belongs to the FMBC Neo series, designed for demanding industrial environments. It provides reliable EMI/EMC protection for critical infrastructure. The series emphasizes durability and consistent performance under varying load conditions, making it a standard choice for professional power conditioning applications requiring certified safety compliance.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers within the FMBC series. Ensure any replacement maintains identical phase configuration, current ratings, and mounting specifications to preserve system integrity and compliance status.
