FMBC-0994-1000

Power Line Filter Modules Overview

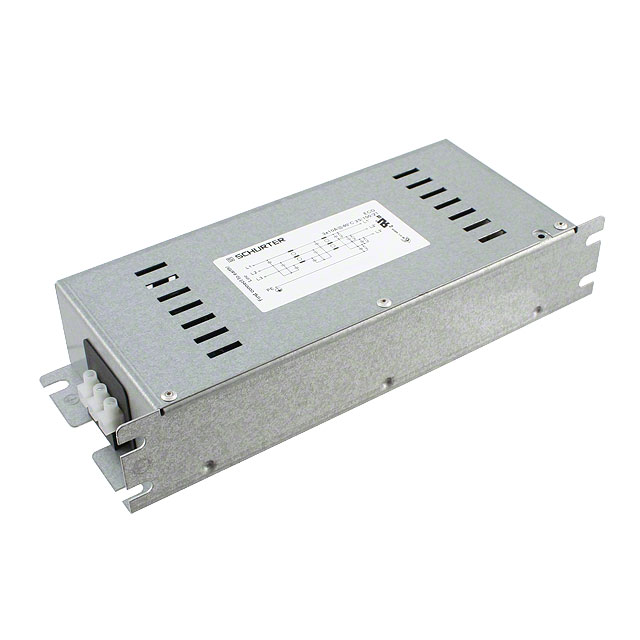

The FMBC-0994-1000 is a three-phase, two-stage power line filter from the Schurter FMBC ECO series. It features a chassis mount design with screw termination for secure installation. The unit is rated for 480 VAC and supports a current capacity of 10 A. Operating within a temperature range of -25°C to +100°C, it incorporates an inductance of 2.3 mH. This component is engineered for efficient electromagnetic interference suppression in industrial power systems.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture designed for enhanced noise attenuation in three-phase applications
• Compact ECO construction optimized for space-constrained industrial environments
• Robust chassis mounting configuration ensuring stable mechanical integration

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-0994-1000 against official Schurter documentation to confirm compatibility with your system requirements. Ensure that the voltage rating of 480 VAC and current capacity of 10 A align with your operational parameters. Check for required certifications such as UL or CSA if applicable to your region. Confirm lead times and availability directly with authorized distributors before finalizing procurement plans.

Power Line Filter Modules Selection Notes

Select this model when high-efficiency noise reduction is required for three-phase systems operating at 480 VAC. The two-stage design offers superior performance compared to single-stage alternatives. Consider the physical dimensions and chassis mount style for panel layout planning. Evaluate the thermal operating range to ensure suitability for the intended environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the FMBC ECO series, which focuses on compact and efficient filtering solutions. The series is designed to meet modern industrial demands for reliable power quality management. The FMBC-0994-1000 specifically addresses needs for three-phase applications requiring robust interference suppression.

Power Line Filter Modules Replacement Considerations

Consult Schurter technical support for verified substitute part numbers. Cross-referencing with similar models in the FMBC series may provide compatible alternatives if this specific variant is unavailable.
