FMBC-345B-3614

Power Line Filter Modules Overview

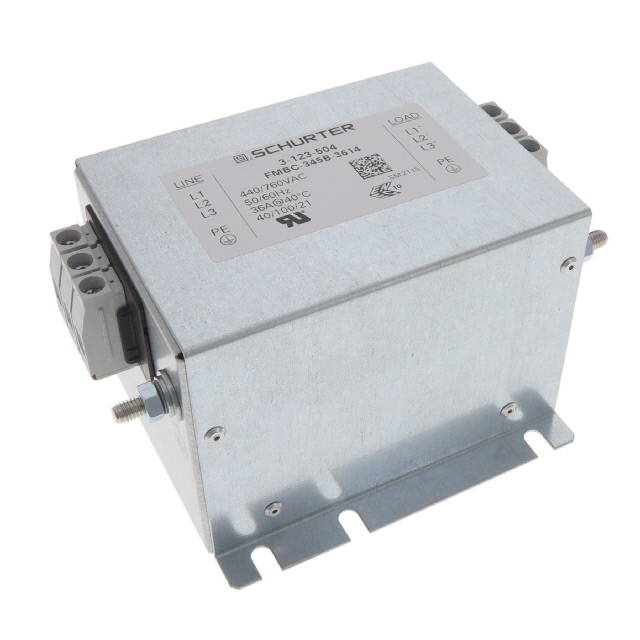

The FMBC-345B-3614 is a three-phase EMC/EMI line filter from the Schurter FMBC NEO series. It provides two-stage attenuation for industrial applications. Rated at 36 A with a maximum voltage of 760 VAC, it operates at 50/60 Hz. The unit features screw terminal connections and chassis mounting. Key electrical parameters include a leakage current of 33 mA and power loss of 6.8 W. Dimensions are 275 mm length, 85 mm height, and 50 mm depth. It complies with UL1283 standards.

Power Line Filter Modules Feature Summary

• Two-stage broadband attenuation for effective noise suppression
• Robust screw terminal connection for secure installation
• Chassis mount design for stable mechanical integration

Power Line Filter Modules Applications

• Industrial machinery electromagnetic compatibility
• Three-phase power distribution systems
• Factory automation equipment filtering

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-345B-3614 against official Schurter documentation to confirm ratings. Ensure the application voltage does not exceed 760 VAC. Check for required certifications such as UL1283 compliance before procurement. Confirm physical dimensions fit the chassis space. Validate terminal type matches the wiring infrastructure.

Power Line Filter Modules Selection Notes

Select this component when two-stage filtering is required for three-phase delta systems. Compare current ratings against peak load requirements. Consider thermal management due to specified power loss. Verify operating temperature range suitability for the environment. Ensure mounting hardware accommodates the chassis mount style.

Power Line Filter Modules Part Context

This filter belongs to the FMBC NEO series, designed for high-performance EMC solutions. It complements other Schurter passive components like fuses and circuit breakers. The series focuses on compact, efficient filtering for industrial power lines. It supports system reliability by preventing interference between electrical devices.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the FMBC series with matching current and voltage ratings. Verify equivalent two-stage topology and terminal configuration. Ensure dimensional compatibility for existing chassis mounts. Confirm regulatory approvals match original specifications.
