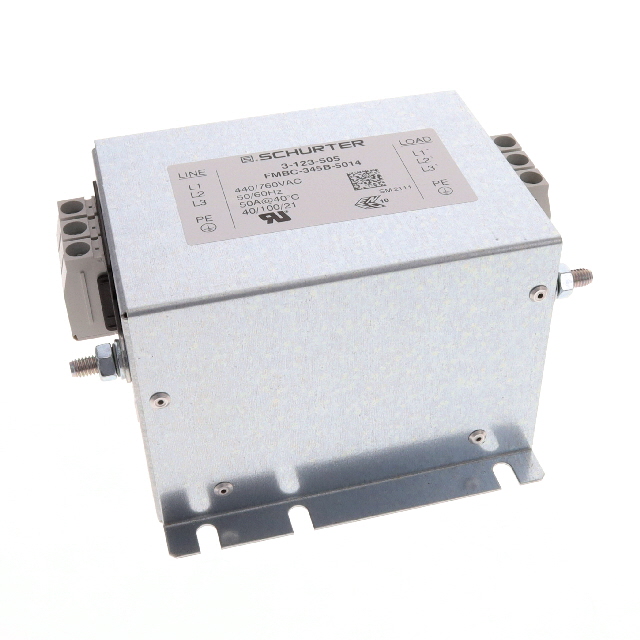

FMBC-345B-5014

$104.05

Description：LINE FILTER 760VAC 50A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box

SKU:11d9da1be7d1 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMBC-345B-5014 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 760VAC 50A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMBC-345B-5014

Description：LINE FILTER 760VAC 50A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：760V
Current：50 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMBC-345B-5014

FMBC-345B-5014

Power Line Filter Modules Overview

The FMBC-345B-5014 is a three-phase RFI filter module from the Schurter FMBC NEO series. It supports a rated AC voltage of 520V and a continuous current of 50A. The unit features a two-stage filtering architecture designed for chassis mounting via screw terminals. Operating frequencies are specified at 50Hz and 60Hz. Key electrical parameters include a capacitance value of 760μF and an inductance value of 50mH. The device operates within a temperature range of -40°C to +100°C.

Power Line Filter Modules Feature Summary

Two-stage EMI suppression architecture
Chassis mount construction with screw terminals
Three-phase delta configuration

Power Line Filter Modules Applications

Industrial power supplies
Battery chargers
Portable devices requiring efficient power conversion

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-345B-5014 against official Schurter documentation to confirm technical specifications. Ensure compatibility with system voltage, current requirements, and mounting constraints before procurement. Cross-reference datasheets for accurate dimensional and environmental data.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust three-phase noise attenuation. Consider the 50A current rating and 520VAC voltage limit. Evaluate the chassis mount style and screw terminal interface against available panel space and wiring methods. Confirm thermal management capabilities within the specified operating temperature range.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series of power line filters manufactured by Schurter Inc. The series is characterized by high-performance EMI suppression modules designed for industrial environments. These filters typically offer compact solutions for noise reduction in sensitive electronic equipment.
