FMBC-345B-6414

Power Line Filter Modules Overview

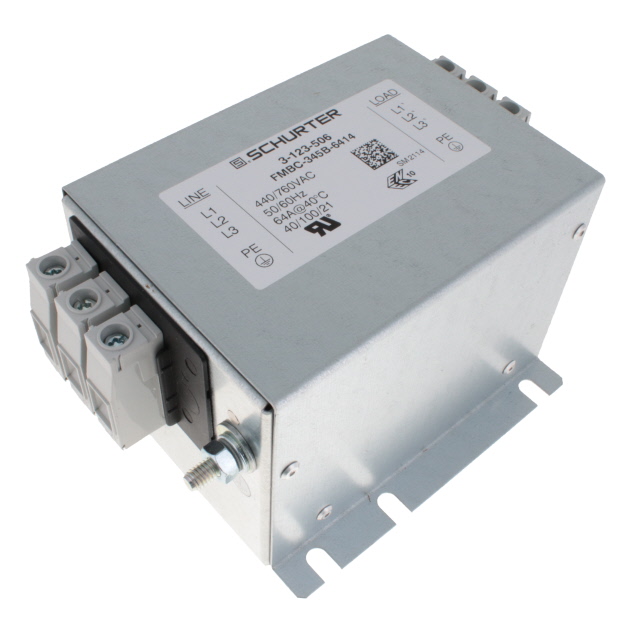

The FMBC-345B-6414 is a three-phase EMC/EMI line filter from the Schurter FMBC NEO series, designed for industrial applications. It supports a rated AC voltage of 760V and a current capacity of 64A. The unit operates within a temperature range of -40°C to +100°C and utilizes chassis mounting with terminal block termination. Key electrical parameters include a leakage current of 3mA, power loss of 6.8W, and internal capacitance of 6.8μF with inductance of 1.9mH. Physical dimensions are 130mm in length, 91mm in height, and 50mm in depth.

Power Line Filter Modules Feature Summary

• Provides effective attenuation of electromagnetic interference in three-phase power systems
• Features robust construction suitable for demanding industrial environments
• Utilizes terminal block termination for secure electrical connections

Power Line Filter Modules Applications

• Industrial power supplies
• Battery charging systems
• Energy-efficient machinery

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Schurter documentation to ensure compatibility with system voltage and current requirements. Confirm that the chassis mounting style and terminal block termination match the installation constraints. Check for any specific certification requirements such as UL1283 if applicable to the target region. Ensure the operating temperature range aligns with the environmental conditions of the deployment site.

Power Line Filter Modules Selection Notes

Select this component when a three-phase filter is required for high-current applications up to 64A at 760VAC. Consider the physical dimensions and chassis mount requirement during mechanical design. Evaluate the leakage current specification against safety standards for the intended equipment. Compare performance metrics with other FMBC NEO series variants if different current ratings or form factors are needed.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series by Schurter, which specializes in passive and electromechanical components including EMC products. The series offers various configurations for single and three-phase applications, focusing on compact design and efficient noise suppression for industrial and commercial power systems.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Cross-reference specifications such as current rating, voltage, and physical dimensions to ensure functional equivalence. Generic alternatives may not meet the same certification or performance standards.
