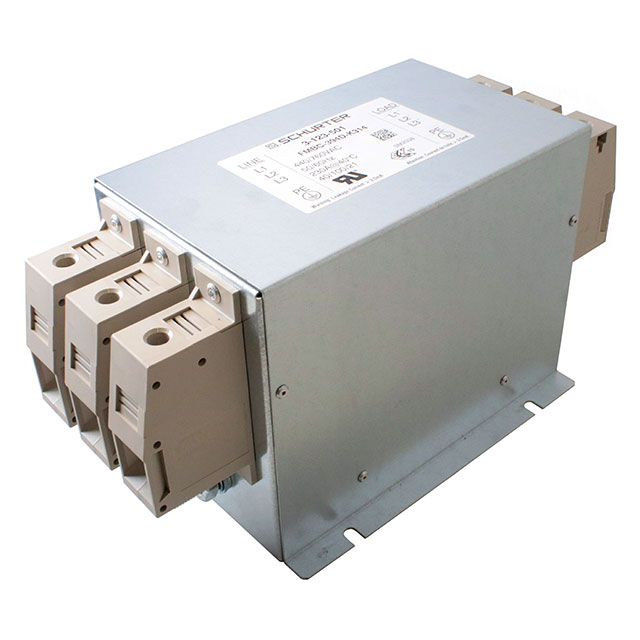

FMBC-394D-K314

$381.45

Description：LINE FLTR 760VAC 230A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box

SKU:b30780cd7dd9 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMBC-394D-K314 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FLTR 760VAC 230A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMBC-394D-K314

Description：LINE FLTR 760VAC 230A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：760V
Current：230 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMBC-394D-K314

FMBC-394D-K314

Power Line Filter Modules Overview

The FMBC-394D-K314 is a three-phase, two-stage RFI power line filter from the Schurter FMBC EP series. It supports a rated current of 230 A and operates at voltages up to 760 V AC. Designed for frequencies of 50 Hz and 60 Hz, it utilizes screw terminal connections for secure installation. The unit features an operating temperature range from -40°C to 100°C and complies with RoHS standards.

Power Line Filter Modules Feature Summary

Two-stage filtering configuration for enhanced electromagnetic interference suppression
High current capacity suitable for demanding industrial power applications
Robust construction designed for stable operation across wide temperature ranges

Power Line Filter Modules Applications

Industrial power supplies
Battery charging systems
Portable device power modules

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the 760 V AC specification before procurement. Confirm that the 230 A current rating aligns with the system load. Ensure the screw terminal interface matches the existing wiring infrastructure. Check for any specific environmental certifications required for the deployment location.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is necessary. The two-stage design offers superior attenuation compared to single-stage alternatives. Consider the physical dimensions and thermal management capabilities given the high current handling. Verify compatibility with the target frequency range of 50/60 Hz.

Power Line Filter Modules Part Context

This model belongs to the FMBC EP series, which focuses on efficient power conversion and voltage regulation. The series is characterized by its ability to handle significant electrical loads while maintaining signal integrity in noisy environments. It represents a specialized solution within Schurter's broader portfolio of EMC products.
