FMBC-395B-6414

Power Line Filter Modules Overview

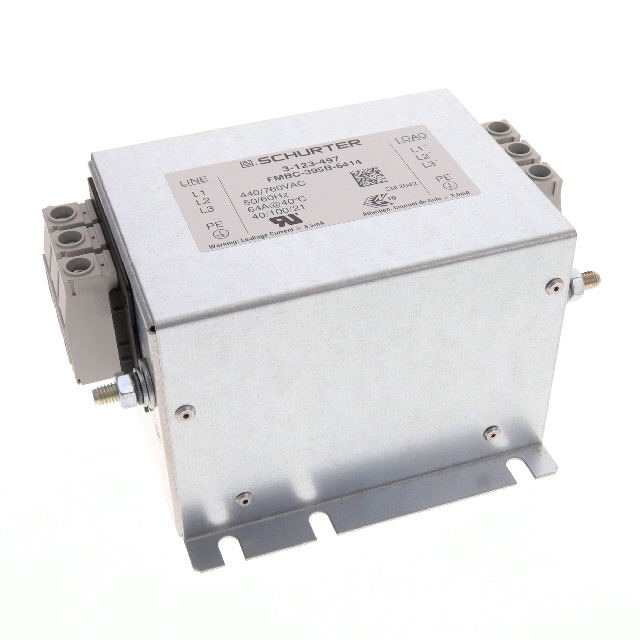

The SCHURTER FMBC-395B-6414 is a three-phase, two-stage power line filter module designed for industrial applications. It features a rated current of 64 A and supports voltages up to 760 VAC. The unit utilizes screw clamp termination and chassis mount installation. Key electrical specifications include a leakage current of 3.75 mA and operation within a temperature range of -40 °C to +100 °C at frequencies of 50 Hz or 60 Hz.

Power Line Filter Modules Feature Summary

• Two-stage attenuation architecture for enhanced electromagnetic interference suppression
• High-capacity current handling suitable for heavy-duty industrial loads
• Robust chassis mounting design for secure integration into control panels

Power Line Filter Modules Applications

• Industrial motor drive systems
• Three-phase power distribution networks
• Heavy machinery EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (760 VAC) against system requirements, as this model differs from standard 480 VAC variants in the FMBC series. Confirm that the 64 A current rating aligns with the load profile. Ensure chassis mounting provisions match the enclosure design. Check for required certifications such as UL, VDE, or cURus depending on regional deployment needs.

Power Line Filter Modules Selection Notes

Select this model when high current capacity and strict EMI reduction are required for three-phase systems operating at elevated voltages. Compare against the FMBC-345B-6414 if lower voltage ratings suffice. Consider the physical dimensions and weight for panel space allocation. Evaluate thermal management requirements given the 100 °C maximum operating temperature limit.

Power Line Filter Modules Part Context

This component belongs to the FMBC EP series of power line filters manufactured by SCHURTER Inc. The series offers various configurations for three-phase AC/DC applications. The FMBC-395B-6414 specifically addresses high-current needs with a two-stage filtering approach, distinguishing it from single-stage or lower-amperage models within the broader product family.

Power Line Filter Modules Replacement Considerations

The FMBC-345B-6414 is a confirmed substitute part number offering similar 64 A capacity but typically rated for 480 VAC. Verify voltage compatibility before substitution. Other FMBC series modules may serve as alternatives if current or stage requirements differ.
