FMBT1000

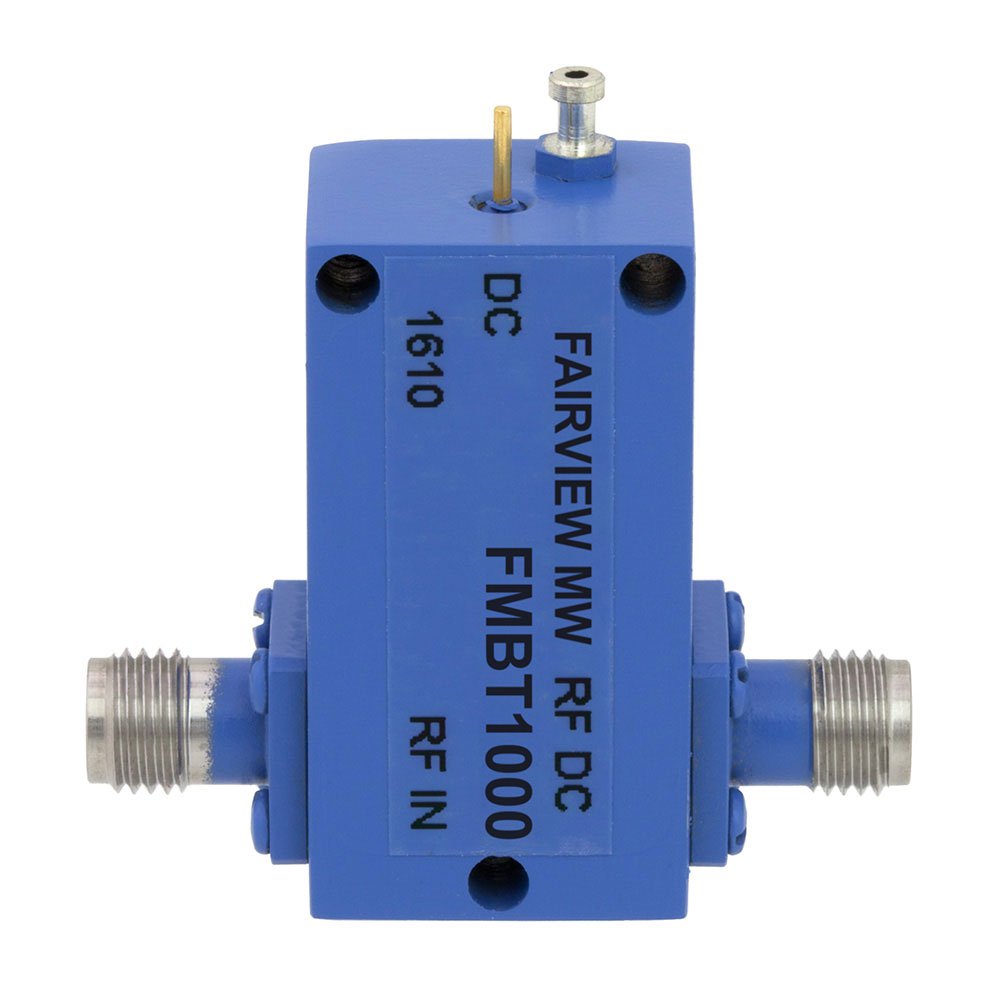

Overview

The FMBT1000 is a bias tee manufactured by Fairview Microwave, designed for RF applications. It operates within a frequency range of 0.5 GHz to 10 GHz. The component supports a maximum voltage of 50 V and a maximum current of 0.7 A. It handles up to 5 W of power and provides 40 dB of isolation.

Feature Summary

• Provides DC bias injection into RF signal paths
• Ensures high isolation between DC and RF ports
• Supports moderate power handling capabilities

Applications

• RF circuit biasing
• Test and measurement setups
• Communication system integration

Procurement Notes

Verify the specific connector type and pinout configuration required for your system integration before ordering. Confirm that the operational voltage and current limits align with your device specifications. Ensure the frequency range covers your intended application bandwidth. Check for any environmental rating requirements if used in extreme conditions.

Selection Notes

Select this component when a bias tee is needed for frequencies between 0.5 GHz and 10 GHz. Consider the 50 V and 0.7 A limits to ensure compatibility with your power supply. Evaluate the 40 dB isolation to determine suitability for your noise sensitivity requirements. Compare physical size and connector style against available space constraints.

Part Context

Fairview Microwave produces passive RF components including adapters, attenuators, and bias tees. The FMBT1000 belongs to their line of bias tees, which are essential for powering active RF devices while maintaining signal integrity. These components facilitate the integration of DC power into RF transmission lines without disrupting the signal path.

Replacement Considerations

No public confirmed substitute part numbers are available.
