FMBT1628

Overview

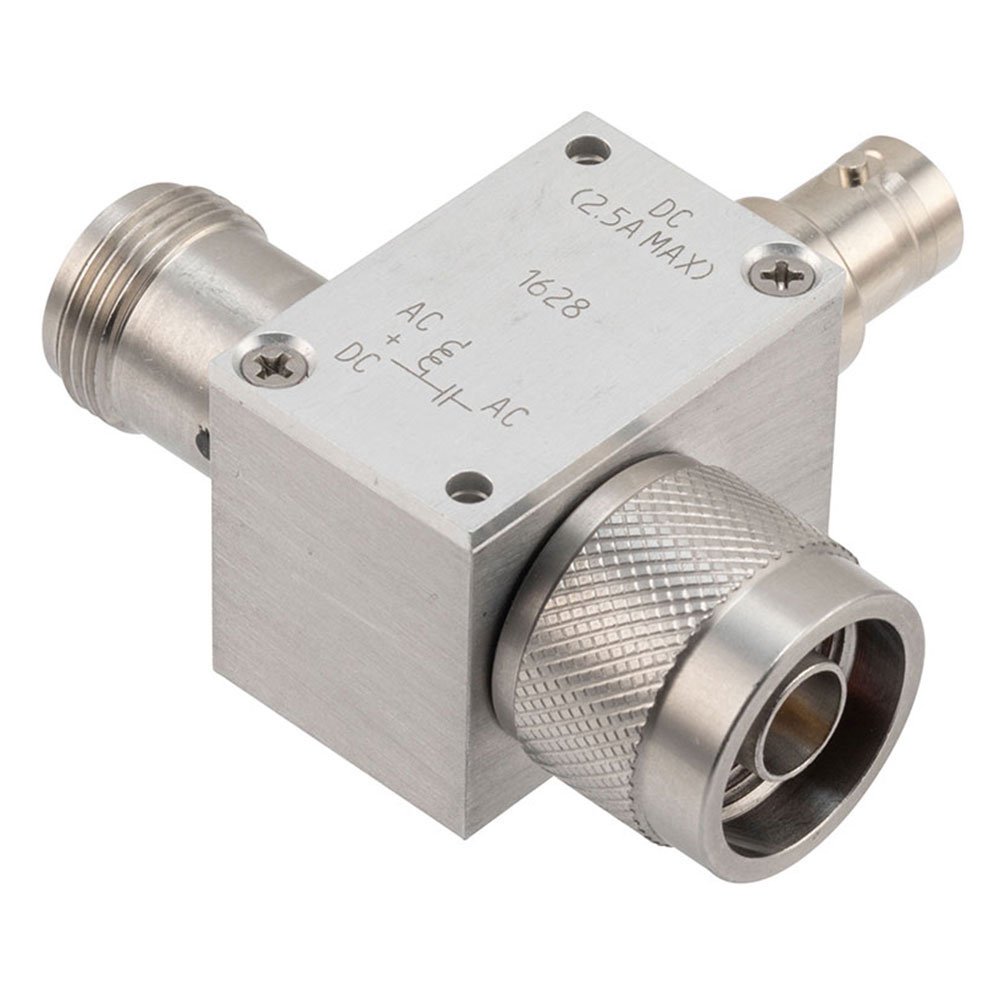

The FMBT1628 is a broadband bias tee manufactured by Fairview Microwave, designed for RF applications spanning 10 MHz to 6 GHz. It features Type N male output connectors and includes a DC BNC connector for bias injection. The component is rated to handle up to 2.5 Amps of current and supports voltages up to 100 Volts. Constructed as a module with chassis mount installation style, it facilitates the simultaneous transmission of RF signals and DC power within the specified frequency range.

Feature Summary

• Integrates RF signal path with DC bias injection via dedicated ports
• Supports broadband operation across a wide frequency spectrum
• Provides high current and voltage tolerance for robust power delivery
• Utilizes standard Type N and BNC connector interfaces for compatibility

Applications

• RF test and measurement setups requiring combined signal and power
• Antenna feed systems needing integrated bias networks
• Amplifier circuits requiring DC power injection at RF frequencies
• Communication equipment testing environments

Procurement Notes

Verify the specific connector gender and interface standards against system requirements before integration. Confirm that the operational voltage and current limits align with the intended DC bias source specifications. Ensure the chassis mounting configuration matches the available enclosure space. Review the official datasheet for precise electrical performance characteristics under varying load conditions.

Selection Notes

Select this component when a broadband solution is required for frequencies between 10 MHz and 6 GHz. Consider the Type N male output for compatibility with standard coaxial systems. Evaluate the 2.5 Amp and 100 Volt ratings to ensure sufficient headroom for the application's power requirements. Assess the physical dimensions and mounting style for mechanical fit within the assembly.

Part Context

This part belongs to Fairview Microwave's line of RF adapters and bias tees, specifically designed for broadband signal processing. It serves as a passive component enabling the combination of RF and DC paths in modular configurations. The product is categorized under RF IC modules and adapters, supporting various wireless and communication infrastructure needs.
