Product Detailed Parameters
- Description：BIAS TEE SMA 10MHZ-12GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Bias Tee
- Frequency：10MHz ~ 12GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

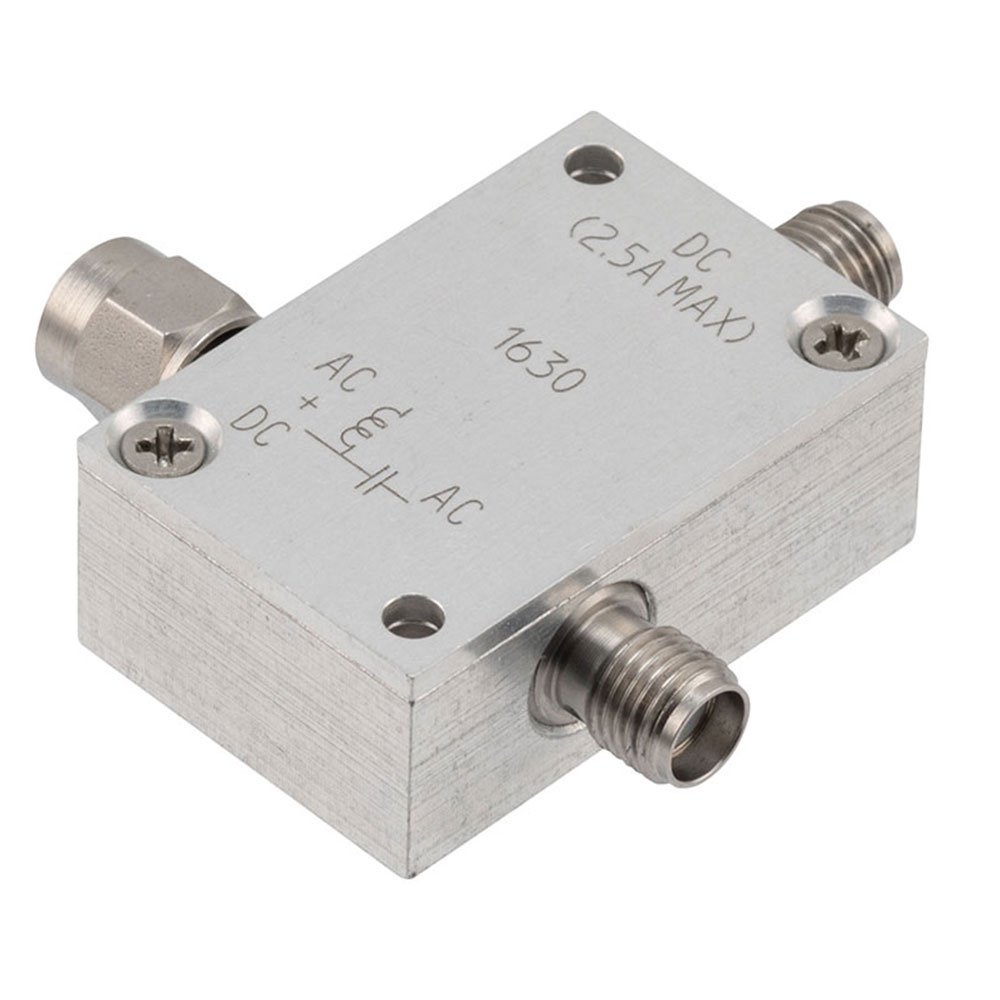

The FMBT1630 is an RF adapter classified as a broadband bias tee manufactured by Fairview Microwave. It features SMA connectors with a male input configuration and operates within a frequency range of 10 MHz to 12 GHz. The device provides DC coupling capabilities, rated for 2.5 Amps current and 100 Volts potential via a dedicated DC SMA connector. Designed for chassis mounting, this component facilitates the simultaneous transmission of RF signals and DC power in microwave applications.
Feature Summary
- Integrates broadband bias tee functionality within an SMA connector interface
- Supports simultaneous RF signal transmission and DC power injection
- Rated for high current and voltage handling on the DC line
Applications
- RF test and measurement setups requiring combined signal and power delivery
- Microwave circuit biasing where space-constrained integration is necessary
- Communication system components needing inline DC power injection
Procurement Notes
Verify the specific datasheet version for the FMBT1630 to confirm mechanical dimensions and electrical tolerances before integration. Ensure that the mating connectors in your assembly are compatible with the SMA male input specification. Confirm that the DC rating aligns with your power supply capabilities to prevent damage to the internal bias network.
Selection Notes
Select the FMBT1630 when a compact solution is required to combine RF and DC paths without separate cabling. This component is suitable for systems operating up to 12 GHz where standard SMA interfaces are mandated. Consider the chassis mount style if panel installation is preferred over cable-based connections for stability in high-frequency environments.
Part Context
Fairview Microwave produces specialized RF interconnect solutions, including adapters and modules like the FMBT1630. These products are designed to meet rigorous performance standards in microwave engineering. The company focuses on providing reliable components for complex RF systems, ensuring signal integrity across various industrial and scientific applications.
