Product Detailed Parameters
- Description：BIAS TEE SMA 0.05MHZ-12.4GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Bias Tee
- Frequency：50kHz ~ 12.4GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

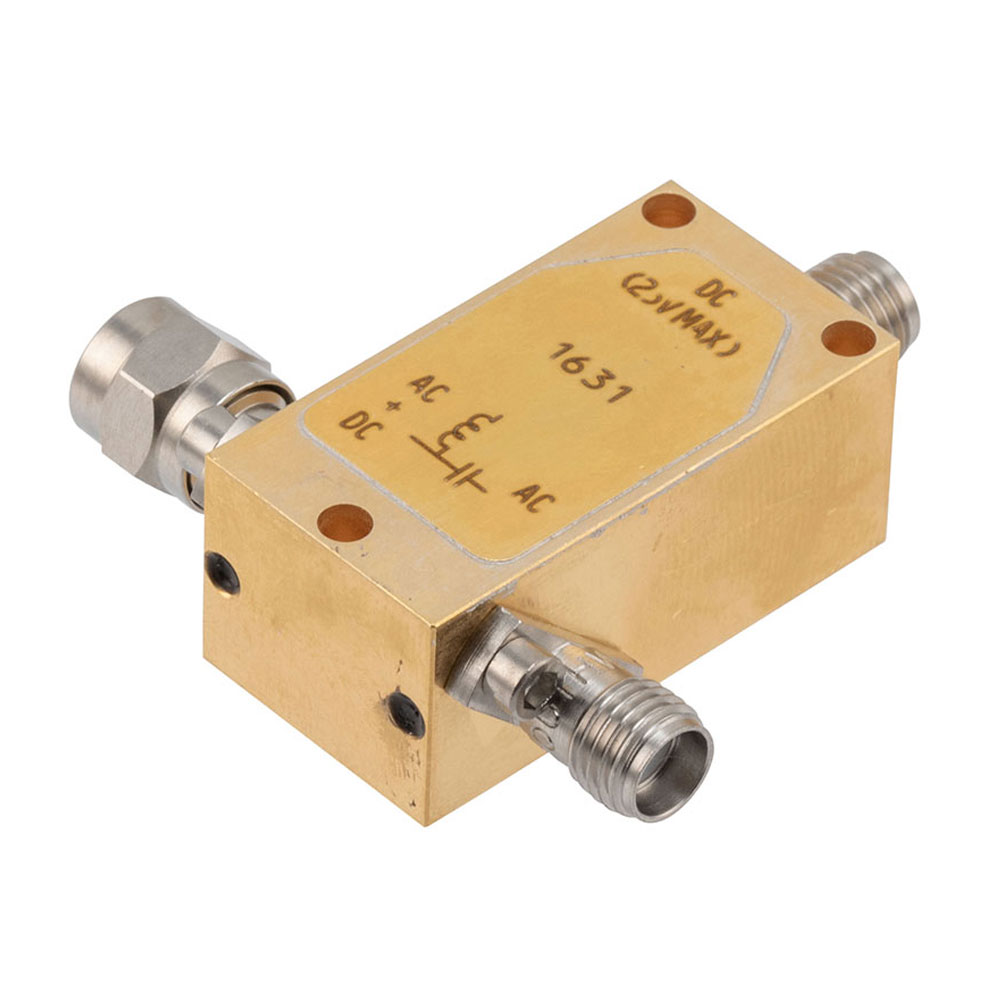

The FMBT1631 is a broadband bias tee manufactured by Fairview Microwave, designed for RF applications spanning 50 kHz to 12.4 GHz. It features SMA male connectors for both the RF signal path and the DC power input. The device supports a maximum voltage of 25 V and a maximum current of 0.75 A. Insertion loss ranges from 1 to 1.5 dB. This component integrates DC bias onto an RF line while maintaining signal integrity across its specified frequency bandwidth.
Feature Summary
- Integrates DC power into RF signals using SMA male connectors for both ports
- Operates effectively across a broad frequency range from 50 kHz to 12.4 GHz
- Supports up to 25 volts and 0.75 amperes for biasing requirements
Applications
- Biasing active RF components such as amplifiers or mixers
- Test and measurement setups requiring combined DC and RF signals
- Broadband communication systems operating within the specified frequency range
Procurement Notes
Verify that the required DC voltage does not exceed 25 V and current remains below 0.75 A. Confirm SMA male connector compatibility with existing cabling. Ensure insertion loss specifications meet system budget requirements. Check datasheet for thermal management needs under continuous operation.
Selection Notes
Select this model when SMA connectivity is required for both RF and DC paths. Consider the 12.4 GHz upper limit for high-frequency applications. Evaluate insertion loss impact on signal strength. Verify physical size constraints if space is limited in the assembly.
Part Context
Fairview Microwave produces specialized RF interconnects and passive components. The FMBT1631 belongs to their bias tee series, which facilitates power delivery to active devices without disrupting RF transmission. These components are commonly used in laboratory environments and industrial RF testing infrastructure.
Replacement Considerations
Check for compatible bias tees with identical SMA male interfaces. Verify frequency coverage matches or exceeds 12.4 GHz. Ensure current and voltage ratings align with circuit demands. Compare insertion loss values to maintain signal performance standards.
