FMBT1632

Overview

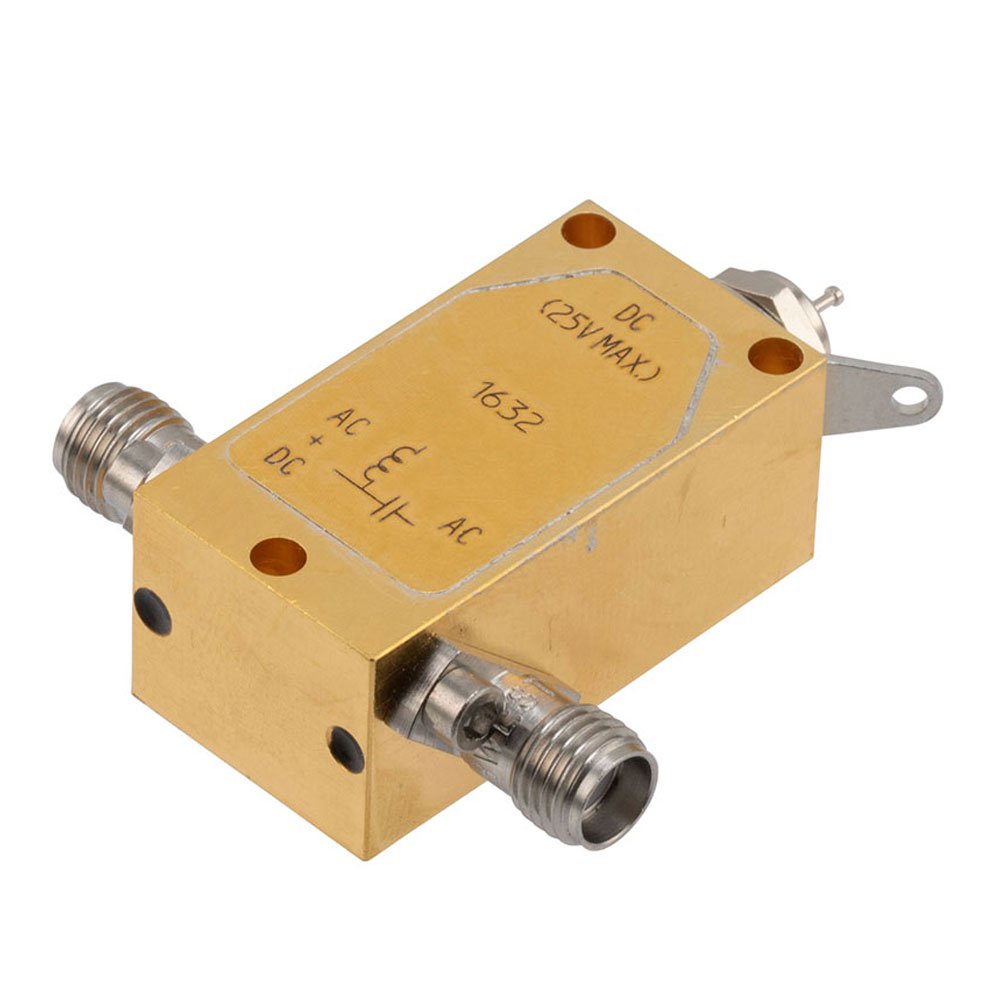

The FMBT1632 is a broadband bias tee adapter manufactured by Fairview Microwave. It operates within a frequency range of 50 kHz to 18 GHz and features SMA connectors. The device is rated for a maximum DC current of 750 mA and a voltage of 25 Volts on the DC pin. It maintains a 50 Ohm impedance characteristic suitable for RF signal transmission while injecting DC power.

Feature Summary

• Integrates broadband RF signal path with DC injection capability
• Utilizes SMA connector interface for standard RF connectivity
• Engineered for high-frequency operation up to 18 GHz

Applications

• RF test and measurement setups requiring DC bias
• Active component powering in microwave circuits
• Signal generation systems integrating DC control

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors to confirm mechanical dimensions and electrical tolerances. Ensure compatibility with existing SMA infrastructure. Check for updated regulatory compliance documentation before integration into final products.

Selection Notes

Select this component when an 18 GHz bandwidth is required for biasing applications. Compare against similar models like FMBT1638 if higher frequency performance beyond 18 GHz is necessary. Confirm that the 750 mA current rating meets the specific load requirements of the connected active devices.

Part Context

This model belongs to the Fairview Microwave RF Adapters - Tee category, specifically designed as a bias tee. It complements other broadband adapters in their portfolio by providing a solution for combining DC power with high-frequency RF signals using standard SMA interfaces.
