Product Detailed Parameters
- Description：BIAS TEE SMA 0.05MHZ-18GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Bias Tee
- Frequency：50kHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

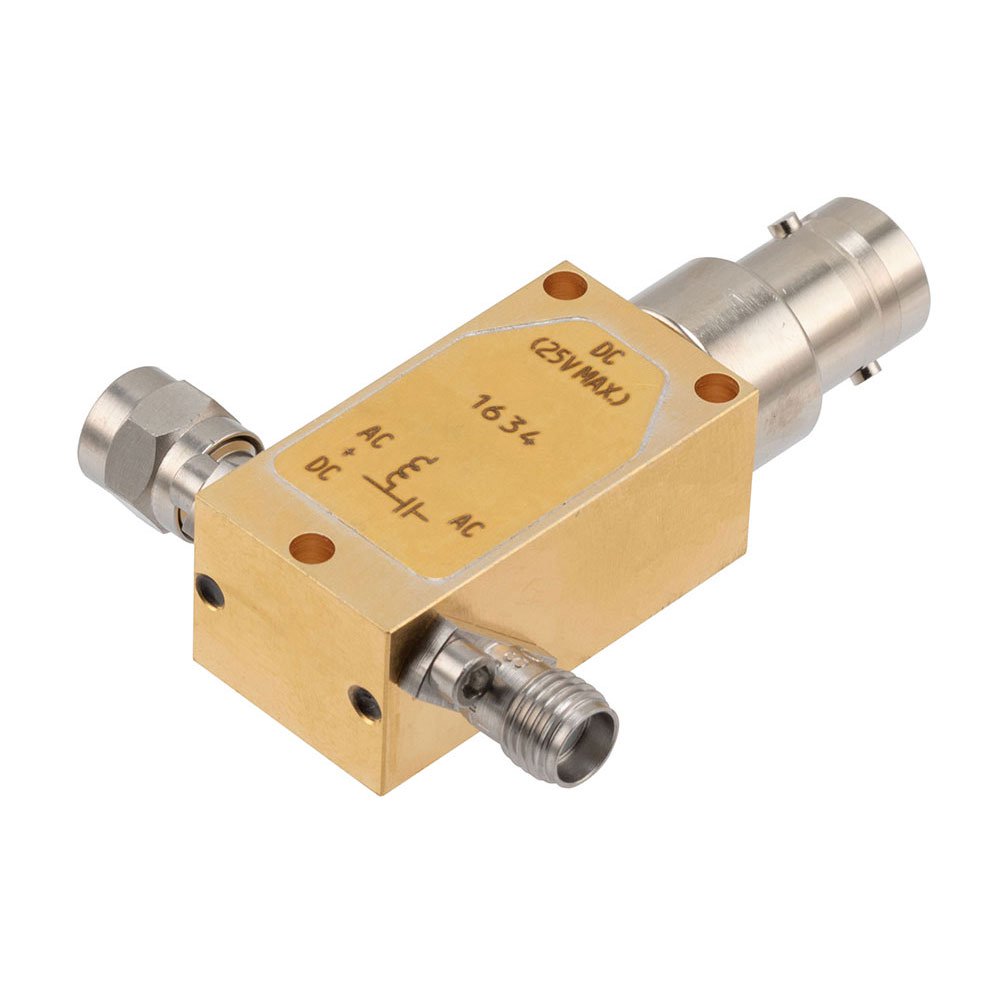

The FMBT1634 is a broadband bias tee module manufactured by Fairview Microwave, designed for RF applications spanning from 50 kHz to 18 GHz. It features SMA male connectors for input and DC BNC connectors for power injection. The device is rated to handle up to 750 mA of current and supports voltages up to 25 Volts. This configuration allows for the simultaneous transmission of RF signals and DC bias on a single line, facilitating the operation of active components within wideband systems.
Feature Summary
- Provides broadband signal coupling across a frequency range of 50 kHz to 18 GHz
- Integrates SMA male RF ports with DC BNC connectors for bias injection
- Supports continuous current ratings up to 750 mA and voltage limits of 25 Volts
Applications
- Biasing active RF components in wideband test and measurement setups
- Integration into general purpose RF circuits requiring combined DC and AC signal paths
- Laboratory environments utilizing broad frequency spectrum analysis
Procurement Notes
Verify connector compatibility between SMA and BNC interfaces before integration. Confirm that system voltage and current requirements remain within the specified 25 Volt and 750 mA limits. Ensure the operating frequency range aligns with the 50 kHz to 18 GHz specification. Check regional availability as distribution may be restricted in certain areas.
Selection Notes
Select this component when a wide bandwidth covering low frequencies up to 18 GHz is required. Choose this model if SMA RF connectivity and BDC DC control are necessary within a single module. Consider the current and voltage ratings to ensure they meet the specific needs of the biased device. Evaluate space constraints as this is a modular solution.
Part Context
This part belongs to the Fairview Microwave family of RF modules and integrated circuits. It serves as a passive interconnect solution enabling DC bias injection into RF lines. The design supports general-purpose applications where signal integrity and broad frequency response are critical for system performance.
