FMBT1637

Overview

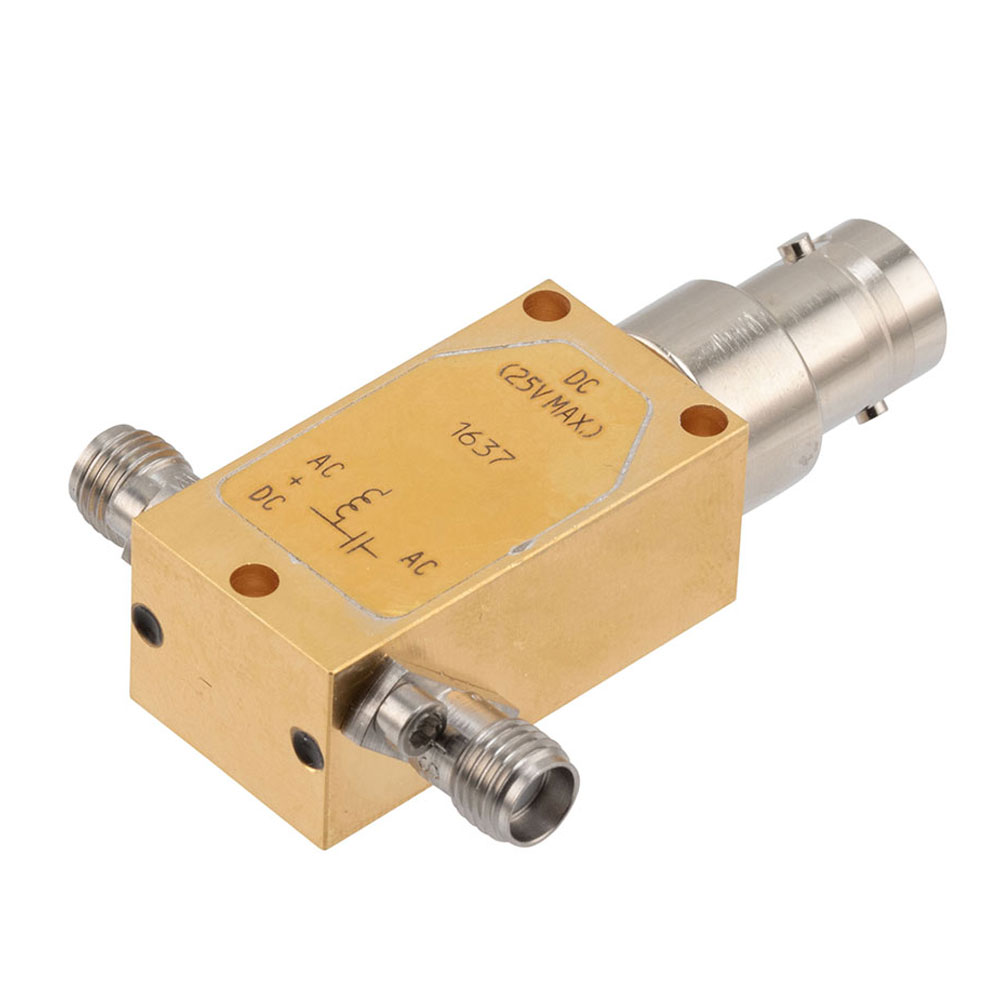

The FMBT1637 is a broadband bias tee manufactured by Fairview Microwave, designed for RF applications spanning from 50 kHz to 26 GHz. This component integrates an SMA connector interface on the signal path and a DC BNC connector for power injection. It is rated to handle up to 750 MHz continuous wave power and withstands voltages of 25 Volts. The device facilitates simultaneous transmission of RF signals and DC bias current through a single port, ensuring isolation between the two domains within its specified frequency range.

Feature Summary

• Integrates SMA signal interface with DC BNC power injection port
• Provides broadband operation across 50 kHz to 26 GHz range
• Enables simultaneous RF signal and DC bias transmission

Applications

• RF circuit testing and measurement setups requiring bias injection
• Active antenna systems needing combined DC power and RF signal paths
• General purpose RF module integration in communication equipment

Procurement Notes

Verify that the specific unit matches the SMA-to-BNC configuration and 25 Volt rating. Confirm the frequency range aligns with system requirements up to 26 GHz. Ensure compatibility with existing SMA connectors in the signal chain. Check for any specific handling instructions regarding the DC BNC interface. Validate that the 750 MHz power rating meets operational limits.

Selection Notes

Select this component when a wideband bias solution is required from low frequencies up to 26 GHz. The SMA interface ensures standard connectivity, while the BNC port simplifies DC power connection. Consider the 25 Volt rating for voltage-sensitive circuits. This model suits applications needing compact integration of bias and signal paths without external discrete components.

Part Context

Fairview Microwave produces specialized RF adapters and bias tees for high-frequency applications. The FMBT1637 belongs to their general-purpose RF IC and module accessories line. It addresses the need for combining DC bias with RF signals in test and measurement environments. The manufacturer focuses on providing reliable interconnect solutions for wireless and RF integrated circuits.

FAQ

What are the connector types used for signal and DC input?

The FMBT1637 uses an SMA connector for the RF signal path and a BNC connector for the DC bias input.

What is the maximum voltage rating for the DC bias?

The component is rated to withstand up to 25 Volts on the DC bias port.
