FMBT1640

$2,188.69

Description：BIAS TEE 2.92MM 0.012MHZ-40GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:aa11c2b03981 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BIAS TEE 2.92MM 0.012MHZ-40GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Bias Tee
Frequency：12kHz ~ 40GHz
RF Type：General Purpose
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Grade：-
Qualification：-

Download product information

FMBT1640

Overview

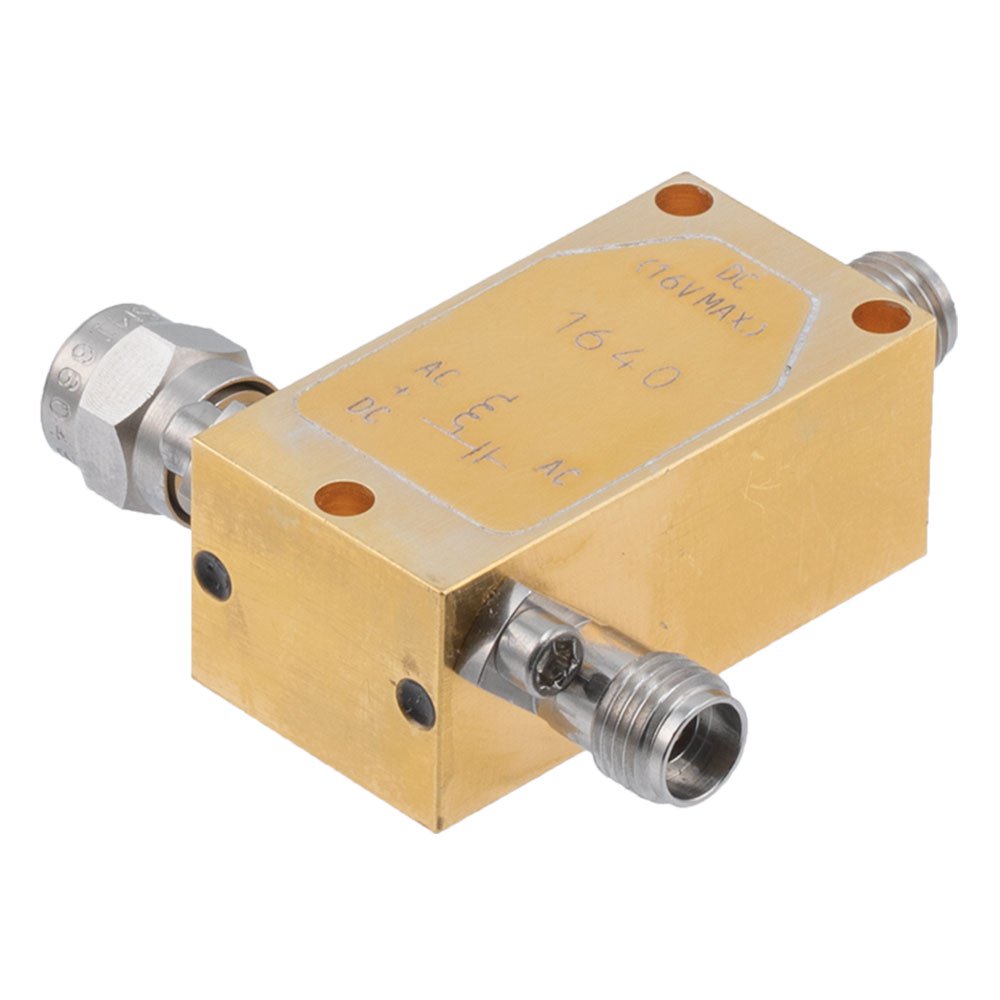

The FMBT1640 is a broadband bias tee manufactured by Fairview Microwave, designed for RF applications spanning from 12 kHz to 40 GHz. It features a 50 Ohm impedance and utilizes SMA connectors on the RF ports. The device is rated for a maximum voltage of 16 Volts and a maximum current of 0.75 Amps. Insertion loss ranges between 1.5 dB and 3 dB across its operational bandwidth.

Feature Summary

Provides broadband DC bias injection capability across a wide frequency spectrum up to 40 GHz
Integrates SMA interface connectors for standard RF signal transmission
Supports continuous wave operation with specified electrical ratings for voltage and current

Applications

RF test and measurement setups requiring simultaneous signal and power delivery
Characterization of active components such as amplifiers and mixers
Broadband communication system integration

Procurement Notes

Verify the specific connector gender configuration and physical dimensions against the official Fairview Microwave datasheet before integration. Confirm that the 0.75 A current rating and 16 V voltage limit align with the target circuit requirements. Ensure the SMA interface type matches the existing board layout or cable assembly specifications to guarantee proper mechanical and electrical continuity.

Selection Notes

Select this component when a wide frequency range extending to 40 GHz is required for bias injection. The 50 Ohm impedance matches standard RF systems. Consider the insertion loss characteristics and thermal management needs associated with the specified current and voltage limits during system design.

Part Context

This bias tee belongs to Fairview Microwave's line of RF adapters and accessories. It complements their portfolio of high-frequency interconnect solutions, providing essential functionality for powering active devices within RF signal paths without disrupting the primary transmission line integrity.
