Product Detailed Parameters
- Description：BIAS TEE SMA 1000MHZ-6GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Bias Tee
- Frequency：1GHz ~ 6GHz
- RF Type：General Purpose
- Secondary Attributes：100V Supply
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

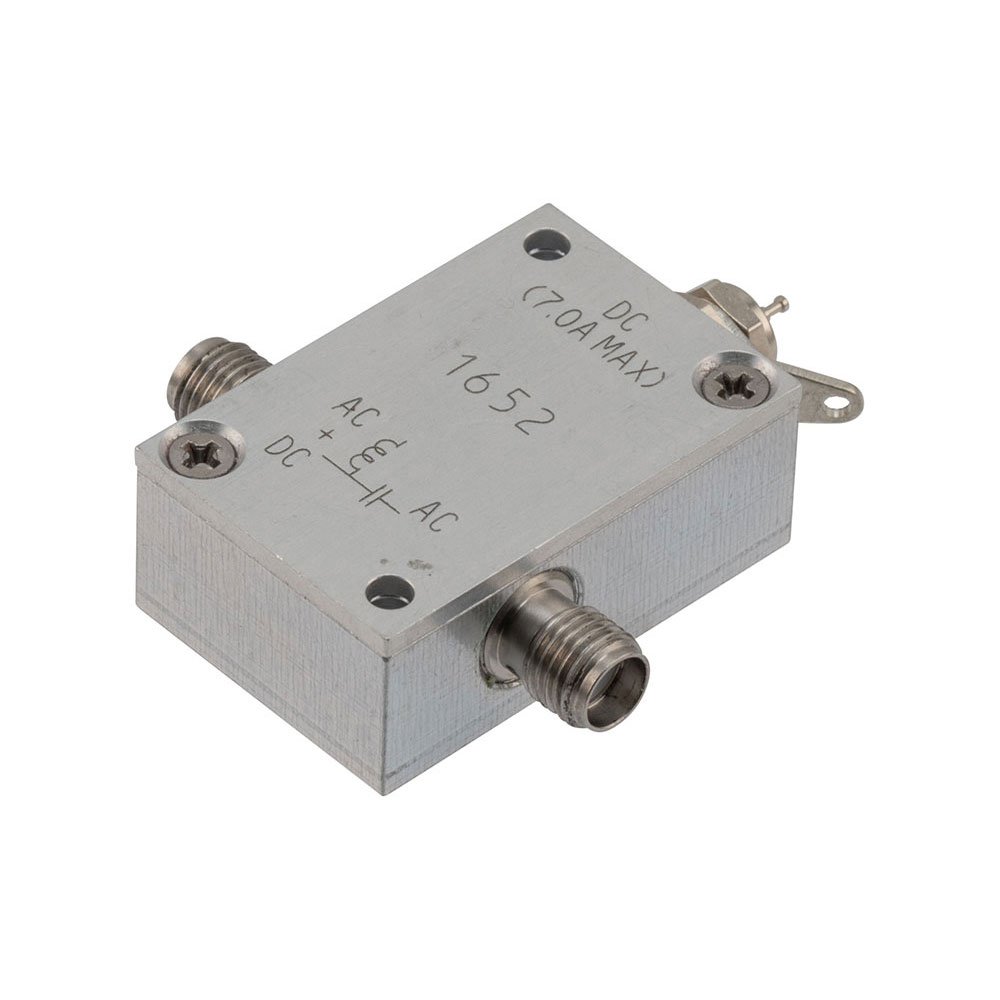

The FMBT1652 is an SMA high current bias tee manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 6 GHz. The component is rated for a maximum voltage of 100 Volts and a maximum current of 7 Amps. Insertion loss ranges from 0.5 to 1 dB, with isolation specified at 30 dB. This RF adapter facilitates the injection of DC power onto RF signals while maintaining signal integrity across its designated bandwidth.
Feature Summary
- Provides simultaneous transmission of RF signals and DC power through a single path
- Designed for high current applications with ratings up to 7 Amps
- Supports wideband operation from 1 GHz to 6 GHz
- Utilizes SMA connectors for standard interface compatibility
Applications
- RF test and measurement setups requiring combined DC bias and RF signal
- Active antenna systems needing integrated power delivery
- Amplifier circuits requiring DC supply via RF feed lines
- Wireless communication hardware testing environments
Procurement Notes
Verify that the required current rating does not exceed 7 Amps and voltage limits remain within 100 Volts. Confirm SMA connector gender requirements match your system design. Ensure operating frequencies fall strictly between 1 GHz and 6 GHz. Check insertion loss specifications against system budget constraints before integration.
Selection Notes
Select this component when high current capability is necessary alongside broadband RF performance. Compare insertion loss values against lower frequency alternatives if bandwidth requirements are less demanding. Consider physical size and mounting style relative to available space in the assembly. Verify thermal management needs given the high current handling capabilities.
Part Context
Fairview Microwave specializes in RF, microwave, and wireless passive components. The FMBT1652 belongs to their line of RF adapters and bias tees. These components support various electronic testing and communication applications requiring reliable signal conditioning and power injection solutions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate other Fairview Microwave bias tees based on frequency range and current ratings if direct replacement is needed.
FAQ
What is the maximum current rating for the FMBT1652?
The FMBT1652 is rated for a maximum current of 7 Amps.
Does the FMBT1652 support frequencies above 6 GHz?
No, the operational frequency range is specified as 1 GHz to 6 GHz.
What is the typical insertion loss for this bias tee?
The insertion loss ranges from 0.5 to 1 dB within the operating frequency band.
