Product Detailed Parameters
- Description：BIAS TEE 1.0MM 100MHZ-110GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Bias Tee
- Frequency：100MHz ~ 110GHz
- RF Type：General Purpose
- Secondary Attributes：16V Supply
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

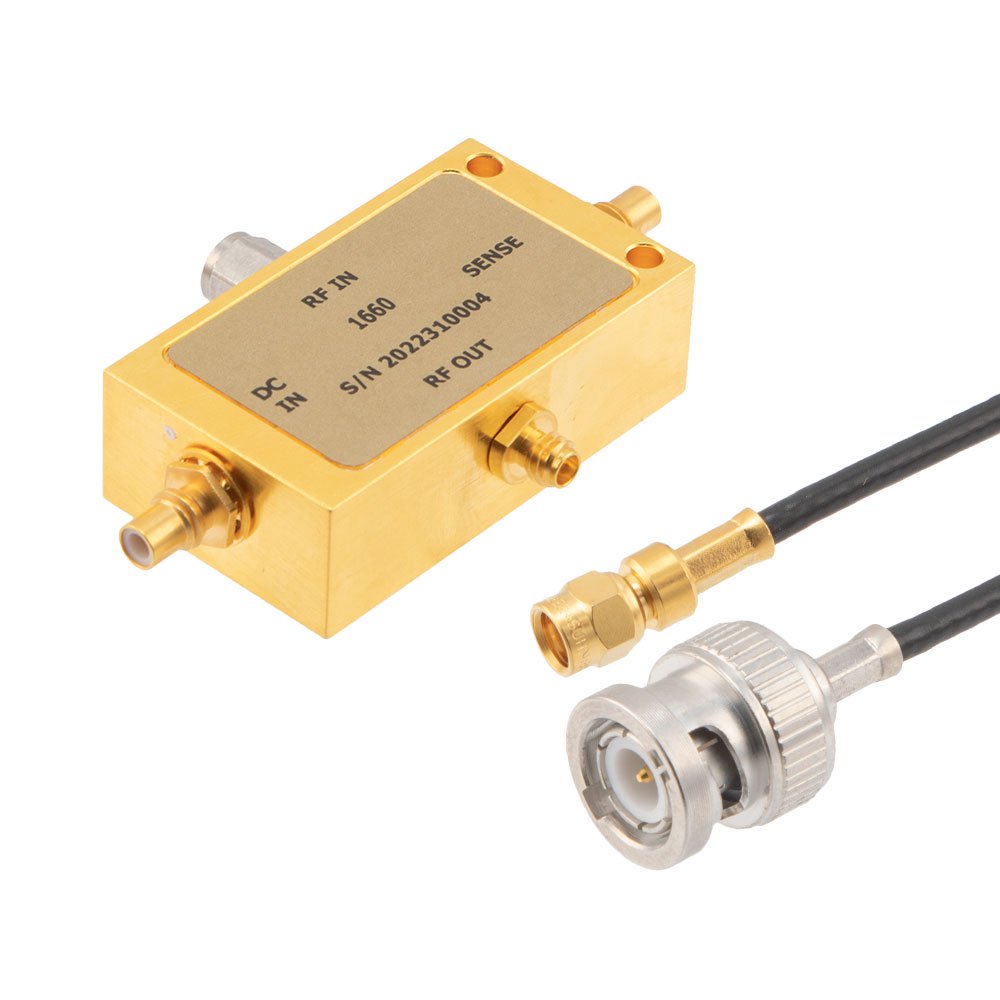

The FMBT1660 is an ultra-wide band Kelvin bias tee manufactured by Fairview Microwave. It operates within a frequency range of 100 MHz to 110 GHz and maintains a 50 Ohm impedance. The component supports a maximum voltage of 16 V, a maximum current of 0.4 A, and handles up to 1 W of power. Insertion loss is rated at 2 dB. Designed for high precision applications, it incorporates metrology-grade quality standards suitable for demanding RF and microwave environments.
Feature Summary
- Ultra-wide bandwidth coverage from 100 MHz to 110 GHz
- Kelvin configuration for independent DC biasing
- Metrology-grade precision design
Applications
- RF test and measurement systems
- Microwave component characterization
- Millimeter-wave circuit testing
Procurement Notes
Verify the specific model designation against official Fairview Microwave documentation to ensure compatibility with system requirements. Confirm that the electrical specifications, including frequency range and power handling, align with the intended application parameters before procurement.
Selection Notes
Select this component when an ultra-wideband solution is required for frequencies extending into the millimeter-wave spectrum. Ensure the system can accommodate the specified voltage and current limits while maintaining the necessary insertion loss characteristics for precise signal integrity.
Part Context
Fairview Microwave specializes in on-demand RF, microwave, and millimeter-wave components. The FMBT1660 belongs to their line of precision bias tees, designed to provide reliable DC biasing without disrupting high-frequency signal paths in advanced electronic systems.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific component.
FAQ
What is the maximum operating frequency?
The maximum operating frequency is 110 GHz.
Does this device support Kelvin biasing?
Yes, the FMBT1660 is designed as a Kelvin bias tee.
