Product Detailed Parameters
- Description：BIAS TEE W1 (1.0 MM) 0.05MHZ-110
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Bias Tee
- Frequency：50kHz ~ 110GHz
- RF Type：General Purpose
- Secondary Attributes：16V Supply
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

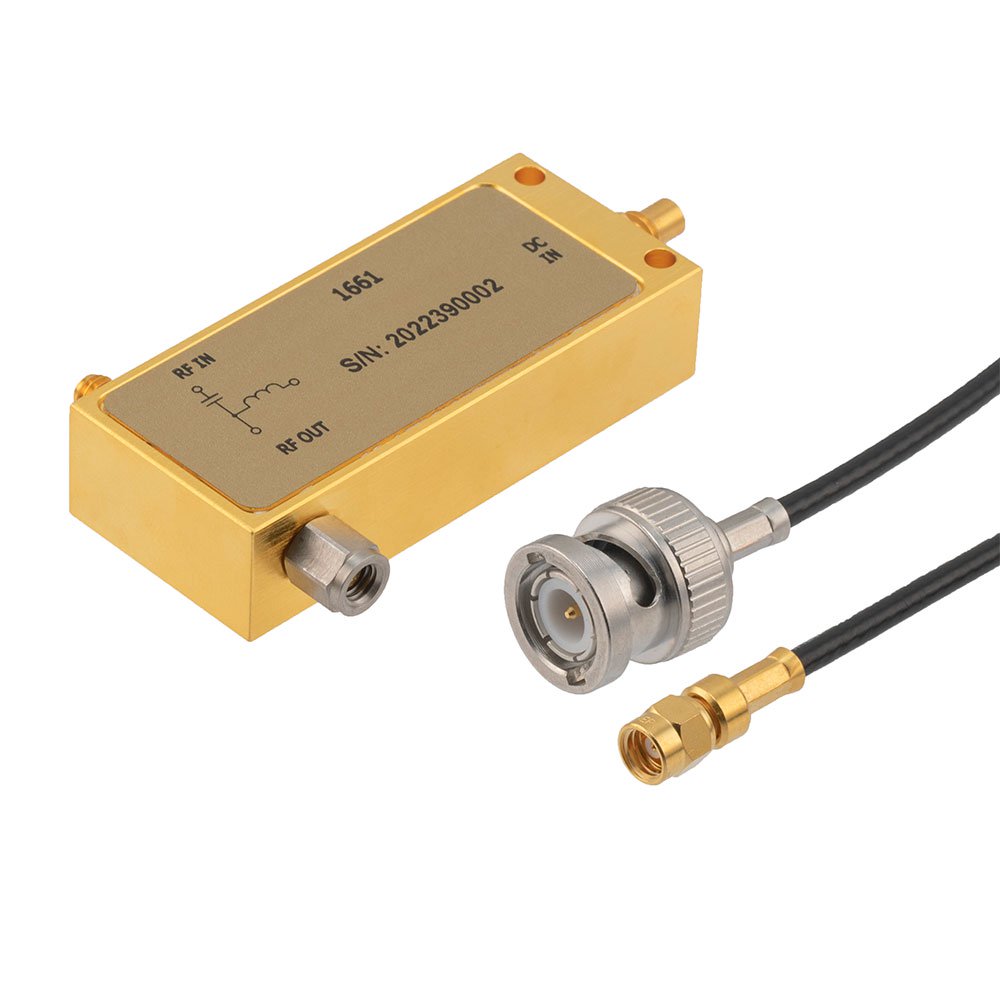

The FMBT1661 is an ultra-wideband bias tee manufactured by Fairview Microwave, designed for general-purpose RF applications. It operates within a frequency range of 50 kHz to 110 GHz and features a nominal impedance of 50 Ohms. The device supports a maximum DC supply voltage of 16 V and a current rating of 400 mA. Packaged in a bag, this component integrates biasing capabilities into high-frequency signal paths without disrupting RF performance.
Feature Summary
- Ultra-wideband operation spanning from low frequencies up to 110 GHz
- Integrated DC biasing with 16V voltage and 400mA current ratings
- General-purpose design suitable for diverse RF system requirements
Applications
- High-frequency test and measurement setups
- Active component biasing in microwave systems
- RF signal path integration requiring DC power injection
Procurement Notes
Verify availability through authorized distributors as stock status may be restricted. Confirm technical specifications against the official datasheet prior to integration. Ensure compatibility with existing 50-Ohm infrastructure. Check regional shipping restrictions and lead times directly with suppliers. Validate packaging details for handling requirements.
Selection Notes
Select this component when ultra-wideband coverage extending to 110 GHz is required. Consider the 400 mA current limit for active device biasing needs. Ensure the 16V maximum voltage aligns with target circuit requirements. Verify mechanical fit and connector types for system integration.
Part Context
Fairview Microwave provides extensive RF and microwave components, including over one million SKUs. The FMBT1661 belongs to their bias tee category, supporting general-purpose applications. The manufacturer emphasizes same-day shipping capabilities globally for available inventory.
Replacement Considerations
No public confirmed substitute part numbers are identified in the provided documentation. Consult official Fairview Microwave resources for potential cross-reference options if specific form-factor or electrical constraints require alternatives.
