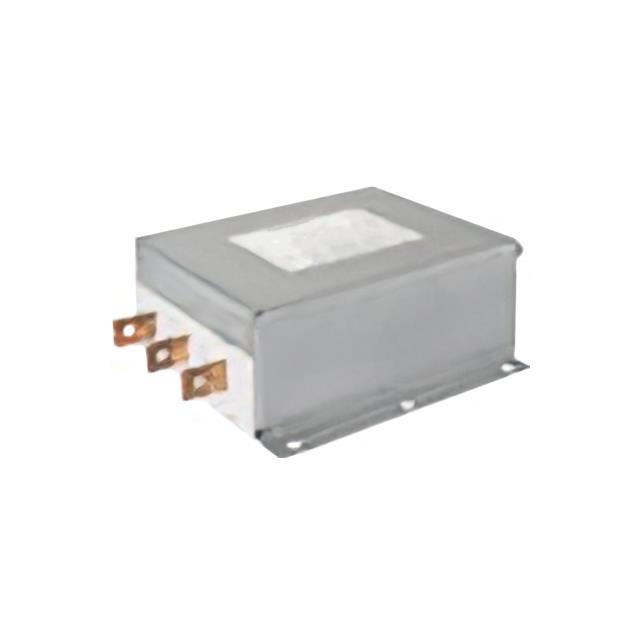

FMCC-I93B-K534 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 250A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for FMCC-I93B-K534
- Description：LINE FILTER 250A CHASSIS MOUNT
- Series：FMCC SOL
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：250 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：cURus
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：520 V
- Voltage - Rated AC (Phase to Phase)：760 V
Power Line Filter Modules datasheet and documents for FMCC-I93B-K534
Power Line Filter Modules Overview
The FMCC-I93B-K534 is a three-phase (Delta) EMC/EMI power line filter manufactured by Schurter Inc. It features a rated current of 250 A and operates at frequencies of 50 to 60 Hz with a rated voltage of 760 VAC. The unit utilizes a metal or aluminum housing and employs a screw mount package type with threaded posts (M10). It is designed as a three-stage filter for high-current applications, exhibiting a leakage current of 13.5 mA.
Power Line Filter Modules Feature Summary
- Three-stage electromagnetic compatibility filtering for three-phase delta configurations
- High-current capacity rated at 250 amperes
- Robust metal or aluminum housing construction
- Screw mount installation using M10 threaded posts
Power Line Filter Modules Applications
- Solar block filter systems
- Industrial power line conditioning
- High-current AC distribution networks
Power Line Filter Modules Procurement Notes
Verify the specific ordering suffix against official Schurter documentation to confirm exact electrical ratings and mechanical dimensions. Ensure the M10 threaded post configuration matches the mounting infrastructure. Confirm that the 760VAC rating aligns with the system voltage requirements before procurement.
Power Line Filter Modules Selection Notes
Select this component for applications requiring high-current three-phase filtering in delta configurations. Consider the physical dimensions and screw mount requirements during mechanical design. Verify compatibility with the 50/60 Hz operating frequency and ensure the leakage current specifications meet safety standards for the intended installation environment.
Power Line Filter Modules Part Context
This model belongs to the FMCC SOL series, which includes high-performance filters for both alternating and direct current applications from Schurter Inc. The series is designed for modern power systems requiring robust EMC/EMI suppression in industrial environments.
Power Line Filter Modules Replacement Considerations
Consult official Schurter substitution guides for verified alternatives. Cross-reference current ratings, voltage limits, and mounting styles when evaluating potential replacements.
