FMDB1002

Overview

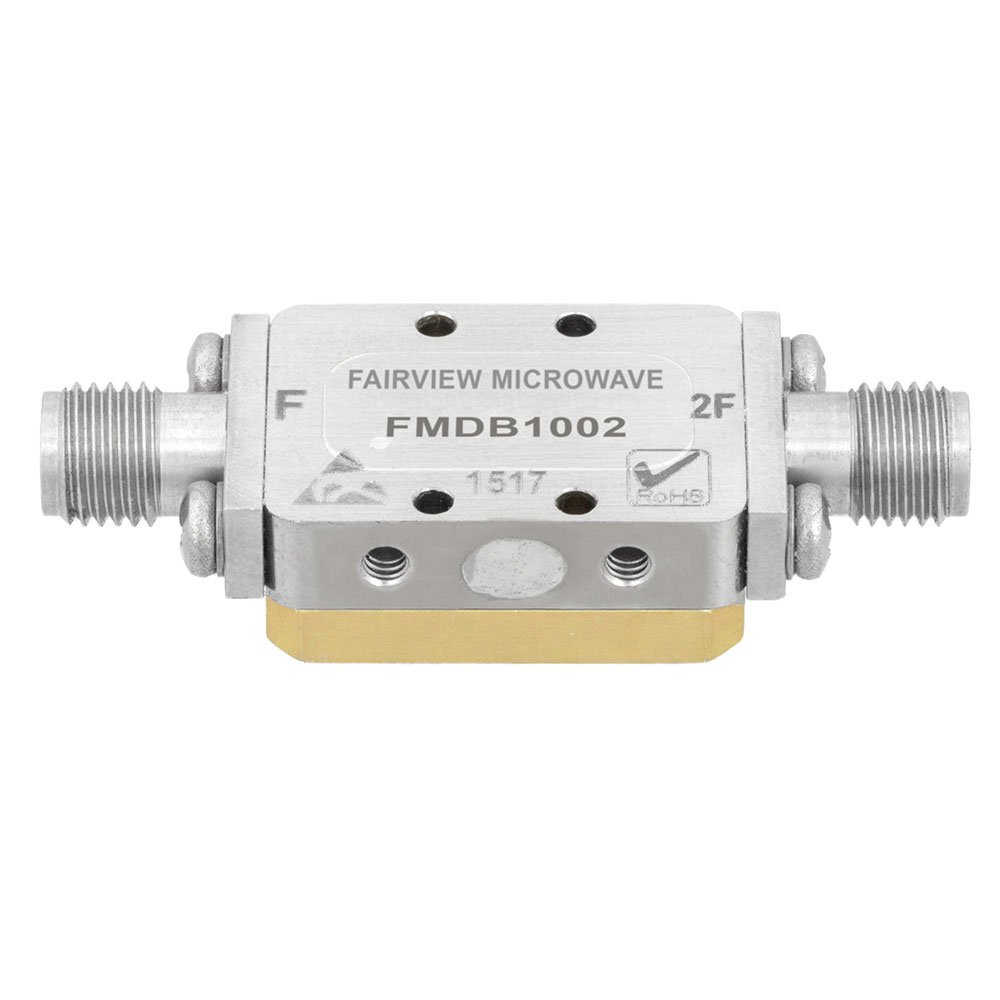

The FMDB1002 is a frequency multiplier manufactured by Fairview Microwave, designed for VSAT RF applications. It operates across two distinct frequency bands: 4 GHz to 9 GHz and 8 GHz to 18 GHz. The component is currently active and supplied in bag packaging. This device functions as a signal processing element within radio frequency systems, facilitating frequency conversion tasks required for satellite communication infrastructure.

Feature Summary

• Performs frequency multiplication for radio frequency signals
• Supports dual operational frequency bands for versatile application
• Engineered specifically for VSAT system requirements

Applications

• VSAT communication systems
• Radio frequency signal generation
• Satellite communication infrastructure

Procurement Notes

Verify the specific datasheet for detailed electrical parameters such as output power, harmonic rejection, and supply voltage requirements before integration. Confirm that the operating environment aligns with the component's thermal and mechanical specifications. Ensure compatibility with existing system architecture regarding impedance and interface standards. Consult official documentation for handling precautions and storage conditions to maintain component integrity during installation.

Selection Notes

Select this component when a frequency multiplier is required for VSAT applications covering the specified low and high frequency ranges. Evaluate system needs against the dual-band capability to ensure coverage of both 4-9 GHz and 8-18 GHz operations. Consider the physical packaging and mounting requirements for the target design. Validate that the device meets the specific performance criteria for signal purity and stability necessary for the intended communication link.

Part Context

Fairview Microwave specializes in RF interconnect solutions and components. The FMDB1002 belongs to their portfolio of active RF devices, complementing passive cable assemblies and connectors. As an active component, it provides essential signal processing functionality within broader RF system designs, distinguishing it from simple transmission media or structural hardware.
