FMER-G62S-J517

Power Line Filter Modules Overview

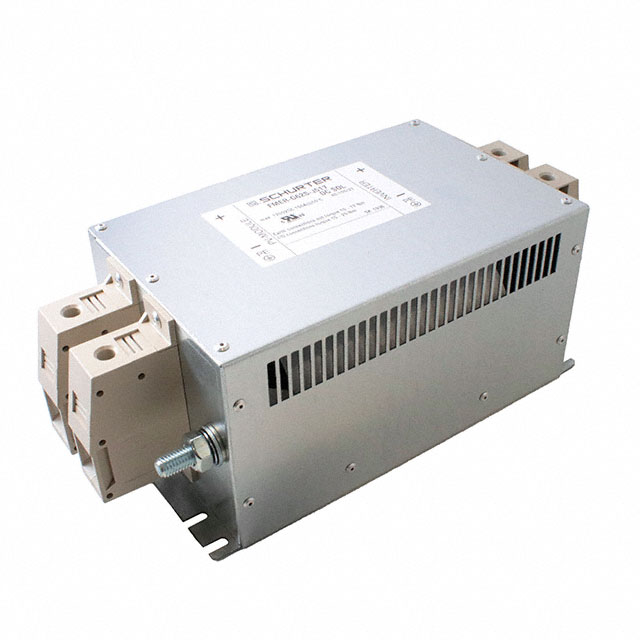

The FMER-G62S-J517 is a DC EMC/EMI line filter module from the SCHURTER FMER SOL series. It features a single-stage configuration designed for chassis mounting with terminal block connections. The unit supports a continuous current rating of 150 A and operates at a rated DC voltage of 1200 V (1.2 kV). Certified by CE, cURus, and UKCA, it functions within an operating temperature range of -40°C to 100°C. The component weighs approximately 5 kg and complies with RoHS3 standards.

Power Line Filter Modules Feature Summary

• Single-stage DC EMC/EMI filtering architecture
• Chassis mount installation with terminal block termination
• Certified for global compliance including CE, cURus, and UKCA

Power Line Filter Modules Applications

• Photovoltaic inverters
• DC power distribution systems
• Industrial DC drive applications

Power Line Filter Modules Procurement Notes

Verify the specific suffix J517 against official Schurter documentation to confirm exact mechanical dimensions and terminal specifications. Ensure the application environment remains within the specified -40°C to 100°C operating temperature range. Confirm that the 1200 VDC rating aligns with the system's maximum voltage requirements. Check for any recent Product Change Notifications regarding manufacturing origin or labeling updates.

Power Line Filter Modules Selection Notes

Select this model when high-current DC filtering is required in space-constrained chassis environments. The terminal block interface facilitates robust electrical connections for heavy-duty applications. Verify compatibility with existing busbar or cable termination methods. Consider the 5 kg weight for structural support requirements during installation.

Power Line Filter Modules Part Context

This component belongs to the FMER SOL series, which provides standardized solutions for DC electromagnetic interference suppression. The series is engineered for industrial and renewable energy sectors, offering reliable performance under demanding electrical conditions. The FMER-G62S-J517 represents a specific variant optimized for 150 A continuous current loads.

Power Line Filter Modules Replacement Considerations

FMER-G62T-K557 is a related variant within the same series but supports a higher current rating of 250 A. Verify if the increased capacity is necessary or if the lower current rating of the G62S-J517 suffices for the specific application load profile.
