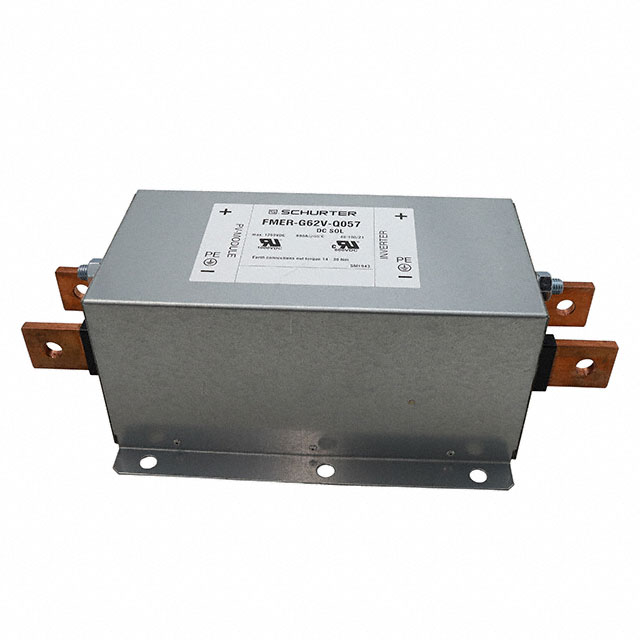

FMER-G62V-Q057

Power Line Filter Modules Overview

The FMER-G62V-Q057 is a DC EMC/EMI line filter module from the SCHURTER FMER SOL series, designed for high-power applications. It features a single-stage configuration with a rated DC voltage of 1200V and a continuous current capacity of 800A. The unit utilizes terminal post connections and is intended for chassis mounting. Operating temperatures range from -40°C to 100°C. Certifications include CE, cURus, and UKCA.

Power Line Filter Modules Feature Summary

• High attenuation performance for DC power lines
• Single-stage filtering configuration
• Robust chassis mounting design

Power Line Filter Modules Applications

• Photovoltaic inverters
• DC power distribution systems
• Industrial DC drive applications

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Schurter documentation to ensure correct terminal type and mechanical dimensions. Confirm that the 800A current rating aligns with system requirements. Check for recent production changes or labeling modifications via PCN notices before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this component when high-current DC filtering is required in a compact single-stage format. Ensure the installation environment supports chassis mounting and operates within the specified temperature range. Verify compatibility with existing busbar or terminal post connection methods for seamless integration into the power architecture.

Power Line Filter Modules Part Context

This module belongs to the FMER SOL family, which offers high-power DC filters up to 2300A. The series provides versions with or without capacitors to ground, catering to diverse EMC requirements in renewable energy and industrial sectors.

Power Line Filter Modules Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other FMER SOL variants only if electrical ratings and mechanical interfaces match exactly.
