FMER-G92W-S557

Power Line Filter Modules Overview

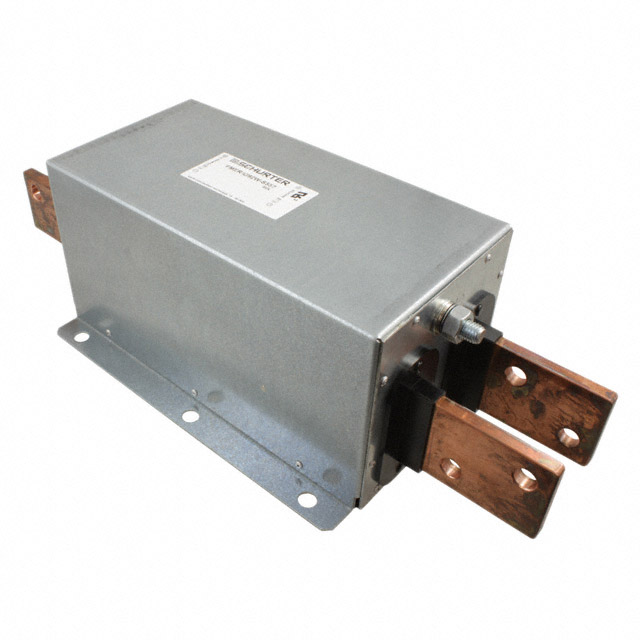

The FMER-G92W-S557 is a DC EMC/EMI line filter module from the SCHURTER FMER SOL series, designed for chassis mounting. It features a single-stage configuration with terminal post termination. The component is rated for a continuous current of 1500 A and a maximum DC voltage of 1200 V (1.2 kV). It operates within a temperature range of -40 °C to 100 °C. The unit weighs approximately 24 kg and includes threaded stud flange mounting.

Power Line Filter Modules Feature Summary

• High-capacity filtering for demanding DC power applications
• Robust chassis mounting design for industrial stability
• Compliance with international safety and electromagnetic standards

Power Line Filter Modules Applications

• Photovoltaic inverters
• DC power distribution systems
• Industrial motor drives

Power Line Filter Modules Procurement Notes

Verify the specific suffix requirements against the official datasheet to ensure correct configuration. Confirm that the mounting hardware matches the threaded stud specifications. Check for any recent Product Change Notices regarding labeling or country of origin changes before finalizing orders.

Power Line Filter Modules Selection Notes

Select this model when high current handling up to 1500 A is required in DC environments. Ensure the application voltage does not exceed 1200 V. Verify that the chassis mounting footprint and thermal management capabilities align with the system's physical constraints and operating temperature limits.

Power Line Filter Modules Part Context

This component belongs to the FMER SOL family of power line filter modules. These units are engineered for robust performance in renewable energy and industrial sectors. The series emphasizes durability and compliance with global regulatory standards for electromagnetic interference suppression.

Power Line Filter Modules Replacement Considerations

FMER-G62T-K557 offers similar functionality but with a lower current rating of 250 A. Ensure the substitute meets the 1500 A requirement if used as a replacement.
