FMFD12000

Overview

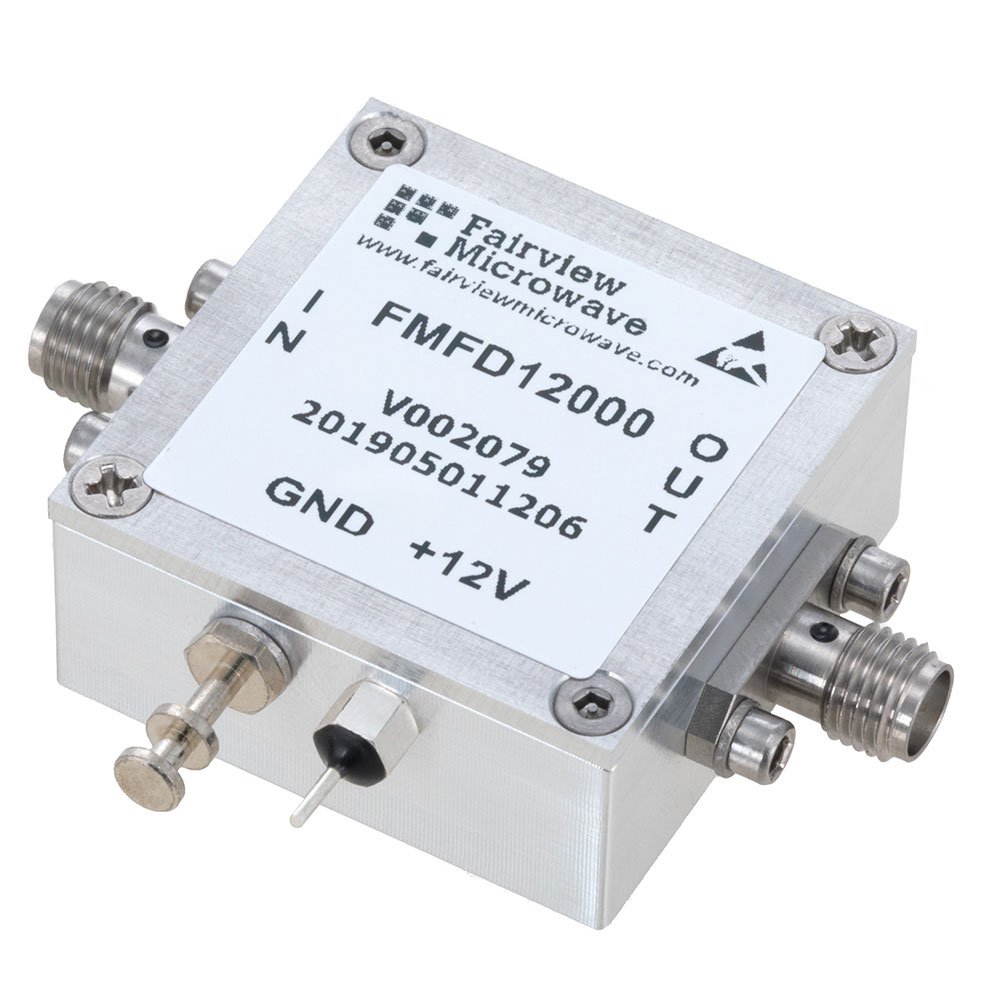

The FMFD12000 is a signal conditioning frequency divider module manufactured by Fairview Microwave. It functions as a divide-by-12 prescaler designed for general-purpose RF applications. The component operates within a frequency range of 100 MHz to 13 GHz, utilizing SMA connectors for interface connectivity. This module provides precise frequency division capabilities suitable for high-frequency signal processing systems.

Feature Summary

• Divide-by-12 prescaler functionality
• SMA connector interface
• General-purpose RF design

Applications

• RF signal processing systems
• Frequency synthesis circuits
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet documentation for the FMFD12000 to confirm detailed electrical specifications and mechanical dimensions. Ensure compatibility with system requirements regarding the SMA interface and operating frequency range before integration. Consult official manufacturer resources for complete technical validation.

Selection Notes

Select this module when a divide-by-12 frequency division ratio is required within the 100 MHz to 13 GHz operational band. The SMA connector type dictates interface compatibility with existing RF infrastructure. Evaluate system needs against the general-purpose classification to ensure suitability for the intended application environment.

Part Context

This component belongs to the Fairview Microwave signal conditioning product line, specifically categorized under frequency dividers. It serves as a specialized module for managing high-frequency signals in electronic systems requiring stable frequency reduction ratios.
