FMFD15000

Overview

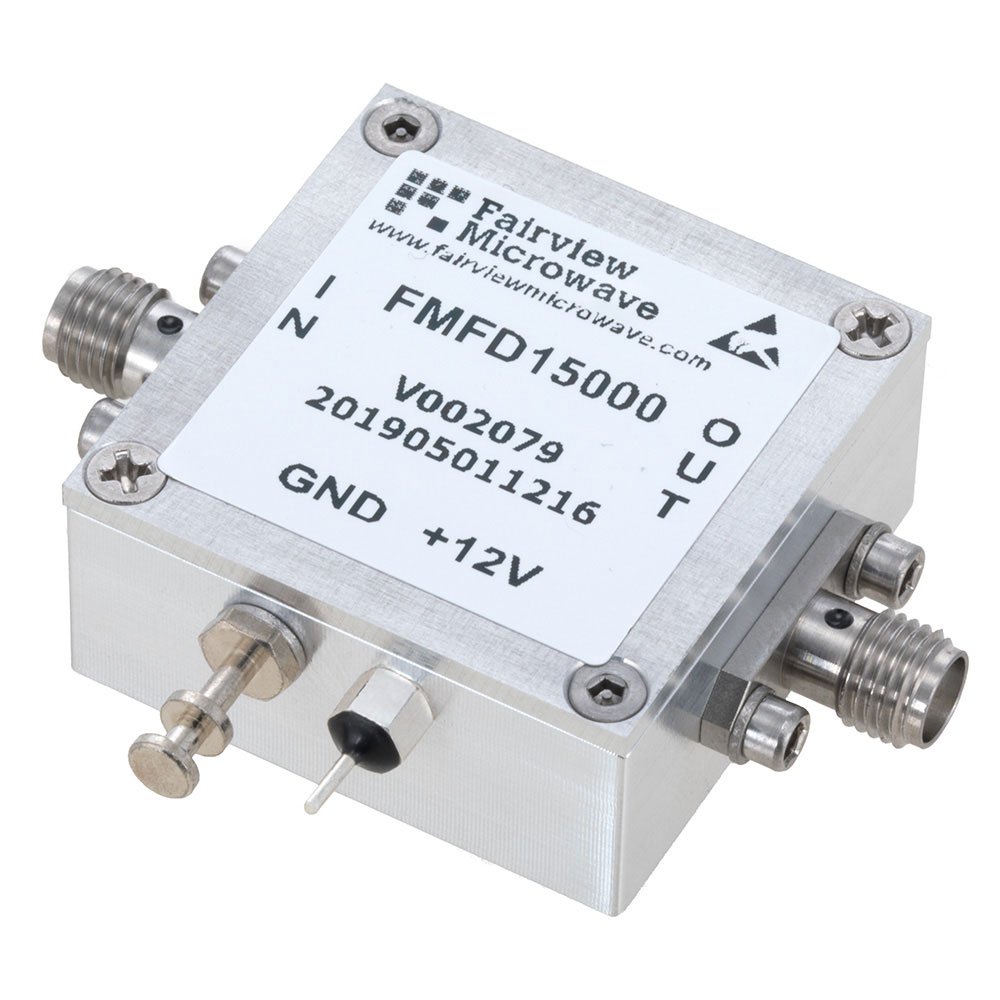

The FMFD15000 is a general-purpose RF prescaler module manufactured by Fairview Microwave. It functions as a frequency divider with an input frequency range of 0.1 GHz to 7 GHz and an output frequency range of 6.67 MHz to 466.7 MHz. The device utilizes SMA connectors for interface connections and operates within standard commercial grade specifications.

Feature Summary

• Provides frequency division capabilities for high-frequency signal processing
• Features SMA connector interfaces for standardized integration

Applications

• General purpose RF signal conditioning
• Frequency synthesis systems requiring prescaling
• Test and measurement equipment signal routing

Procurement Notes

Verify the specific datasheet documentation from Fairview Microwave or authorized distributors to confirm current availability and technical compliance. Ensure that the SMA interface requirements match your system design constraints before procurement. Cross-reference the input and output frequency ranges against your application needs to ensure operational validity.

Selection Notes

Select this component when a dedicated frequency divider is required for signals between 0.1 GHz and 7 GHz. The SMA interface simplifies integration into existing RF test setups. Consider the output frequency limits up to 466.7 MHz when designing subsequent stages of the signal chain.

Part Context

This module belongs to the Fairview Microwave line of RF miscellaneous integrated circuits and modules. It serves as a specialized passive or active divider unit designed to reduce high-frequency inputs to lower frequencies suitable for further processing or analysis in communication systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
