FMFD20001

Overview

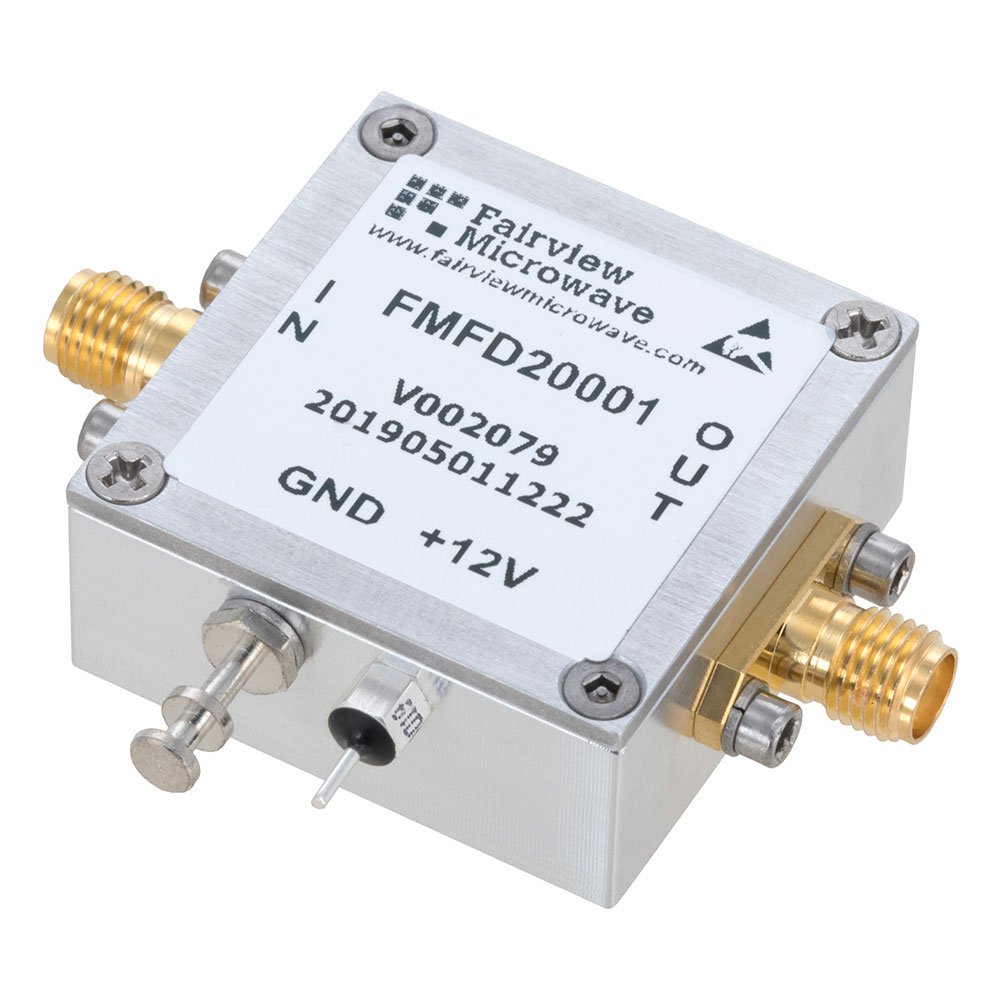

The FMFD20001 is a general-purpose RF prescaler module manufactured by Fairview Microwave. It operates within two distinct frequency ranges: 10 MHz to 300 MHz and 200 MHz to 6 GHz. The component utilizes SMA connectors for input and output interfaces, facilitating integration into signal conditioning circuits. Designed for broad application versatility, this module supports frequency division tasks across microwave frequencies up to 6 GHz.

Feature Summary

• Provides frequency division functionality via an integrated prescaler architecture
• Supports dual operational bands covering low microwave to high-frequency ranges
• Features standard SMA connector interfaces for straightforward circuit integration

Applications

• Signal conditioning in radio frequency systems
• Frequency synthesis and division circuits
• General-purpose RF measurement equipment

Procurement Notes

Verify the specific datasheet documentation for precise electrical characteristics and pinout configurations before integration. Confirm that the SMA connector gender and mating requirements align with existing system infrastructure. Ensure operating conditions remain within the specified frequency limits of 10 MHz to 6 GHz to maintain performance integrity.

Selection Notes

Select this module when a compact solution for frequency division is required across wide bandwidths. The dual-range capability allows flexibility in handling signals from 10 MHz up to 6 GHz. Consider the SMA interface compatibility when designing PCB layouts or cable assemblies for seamless connection to upstream and downstream components.

Part Context

This component belongs to Fairview Microwave's portfolio of RF integrated circuits and modules. It serves as a specialized building block for engineers working on high-frequency signal processing applications. The product line emphasizes reliable performance in demanding RF environments, supporting both industrial and communication system designs.
