FMFD2002

Overview

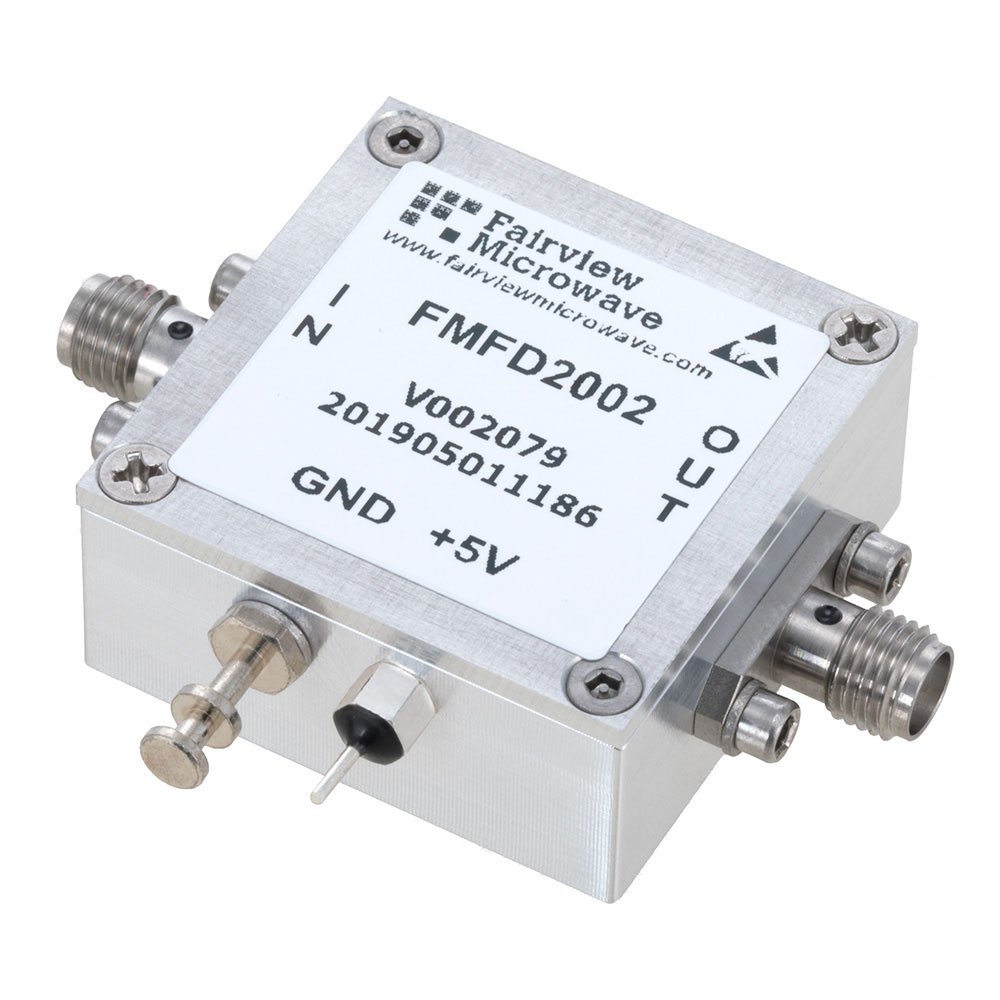

The FMFD2002 is a general-purpose RF frequency divider module manufactured by Fairview Microwave. It features SMA connectors and operates within two distinct frequency bands: 50 MHz to 10 GHz and 100 MHz to 20 GHz. The component is designed for signal processing applications requiring frequency division functionality in microwave systems.

Feature Summary

• Dual-band frequency division capability covering 50 MHz to 10 GHz and 100 MHz to 20 GHz ranges
• Integrated SMA connector interface for direct system integration
• General-purpose RF module design suitable for diverse microwave applications

Applications

• Microwave signal generation systems
• Frequency synthesis circuits
• RF test and measurement equipment

Procurement Notes

Verify the specific operational frequency band required for your application, as the datasheet indicates dual-range specifications (50 MHz–10 GHz and 100 MHz–20 GHz). Confirm that the SMA connector type matches your system interface requirements. Ensure the module's power handling and output characteristics align with your circuit design before procurement.

Selection Notes

Select this module when a compact, general-purpose frequency divider is needed for frequencies up to 20 GHz. Consider the SMA interface compatibility with existing PCB or cable assemblies. Evaluate whether the dual-band specification meets the exact frequency needs of the target application without requiring additional filtering or amplification stages.

Part Context

Fairview Microwave specializes in RF, microwave, and wireless passive components. The FMFD2002 belongs to their portfolio of RF miscellaneous ICs and modules, providing standardized solutions for frequency manipulation in high-frequency electronic systems.

Replacement Considerations

No public substitute part numbers are documented for the FMFD2002. Verify functional equivalence if considering alternative manufacturers, specifically regarding frequency range and connector type.
