FMFD24000

Overview

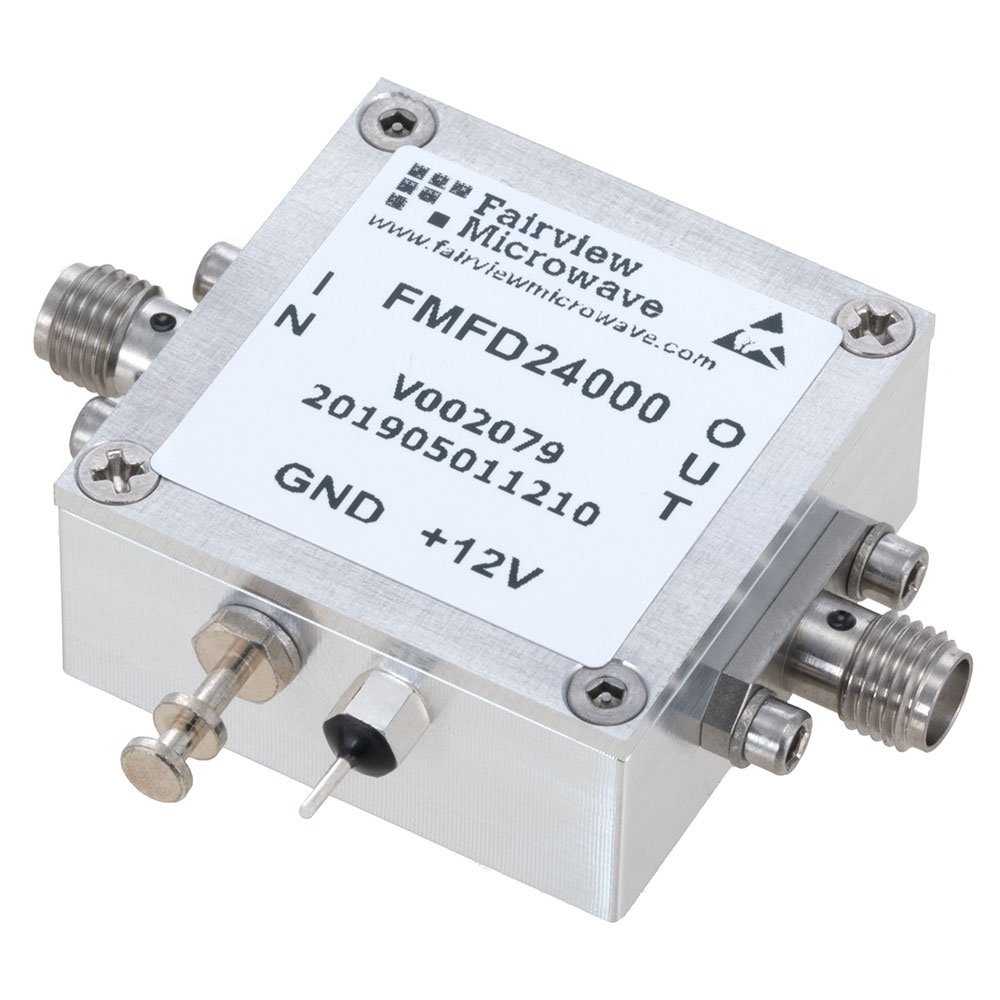

The FMFD24000 is a coaxial packaged frequency divider module manufactured by Fairview Microwave. It functions as a divide-by-24 prescaler designed for general-purpose RF applications. The component operates across two distinct input frequency ranges: 100 MHz to 500 MHz and 100 MHz to 12 GHz. It features SMA connectors for interface connectivity. The mechanical construction utilizes brass body materials with black chrome contacts, gold plating per MIL-G-45204 standards, and Teflon insulators. This module provides signal conditioning capabilities within the specified microwave and millimeter-wave spectrum.

Feature Summary

• Divide-by-24 frequency division functionality
• Dual operational frequency bands covering up to 12 GHz
• Coaxial packaging with SMA connector interfaces
• Gold-plated contacts and Teflon insulation for signal integrity

Applications

• General purpose RF signal processing systems
• Microwave frequency synthesis circuits
• Test and measurement equipment requiring precise frequency division

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with system impedance requirements. Check for any updated regulatory compliance certifications prior to procurement. Confirm that the SMA connector gender and mating requirements align with the target application design specifications.

Selection Notes

Select this module when a divide-by-24 ratio is required for frequencies extending up to 12 GHz. Consider the coaxial form factor for integration into existing RF chains. Evaluate the SMA interface compatibility against system connectors. Assess thermal and power handling capabilities against specific application loads to ensure reliable operation within the stated frequency ranges.

Part Context

Fairview Microwave specializes in high-quality RF, microwave, and mmWave components. The FMFD24000 belongs to their range of active RF ICs and modules. It is part of a broader portfolio offering various signal conditioning solutions. The company provides these components globally with same-day shipping options through major distributors like DigiKey and Mouser.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for potential alternatives or cross-reference options based on specific performance requirements.
