Product Detailed Parameters
- Description：FREQ DIVIDER SMA 100MHZ-12GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Prescaler
- Frequency：2.5MHz ~ 300MHz, 100MHz ~ 12GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

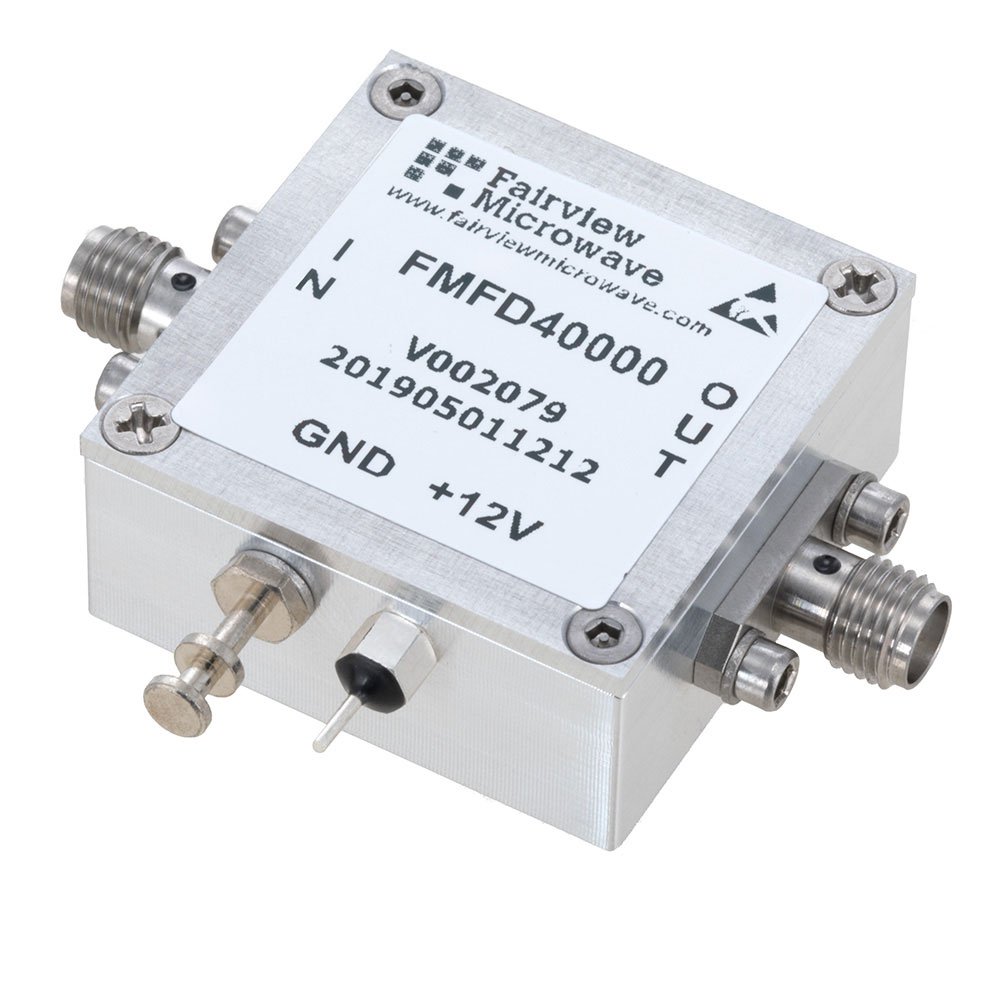

The FMFD40000 is a signal conditioning module manufactured by Fairview Microwave, functioning as an SMA frequency divider with a divide-by-40 prescaler. It operates within a frequency range of 100 MHz to 12 GHz. The component is packaged in a bag and has a factory pack quantity of one unit.
Feature Summary
- Functions as a divide-by-40 prescaler for frequency division applications
- Utilizes SMA connectors for RF interface connectivity
- Designed for general purpose signal conditioning tasks
Applications
- Frequency synthesis systems requiring high division ratios
- Test and measurement equipment operating in microwave bands
- Communication infrastructure components needing frequency down-conversion
Procurement Notes
Verify the specific datasheet for the FMFD40000 to confirm electrical characteristics and mechanical dimensions prior to integration. Ensure compatibility with system requirements regarding the 100 MHz to 12 GHz operational range. Check for any regional distribution restrictions or supply limitations that may affect procurement timelines. Confirm connector type and mounting specifications match the design constraints.
Selection Notes
Select this module when a divide-by-40 prescaler is required within the 100 MHz to 12 GHz spectrum. Consider the SMA interface for standard RF connections. Evaluate the need for general-purpose signal conditioning capabilities. Compare against other frequency dividers if different division ratios or frequency ranges are necessary for the specific application architecture.
Part Context
Fairview Microwave produces the FMFD40000 as part of its signal conditioning portfolio. This module is categorized under RF miscellaneous ICs and modules. It serves as a specialized component for frequency manipulation, distinct from amplifiers or filters within the manufacturer's lineup. The product is listed as active status in relevant catalogs.
Replacement Considerations
The FMFD40002 is a related model offering a similar prescaler function but with an extended frequency range up to 20 GHz. Verify if the higher frequency capability of the FMFD40002 is required or if the 12 GHz limit of the FMFD40000 is sufficient for the design.
