FMFD4003

Overview

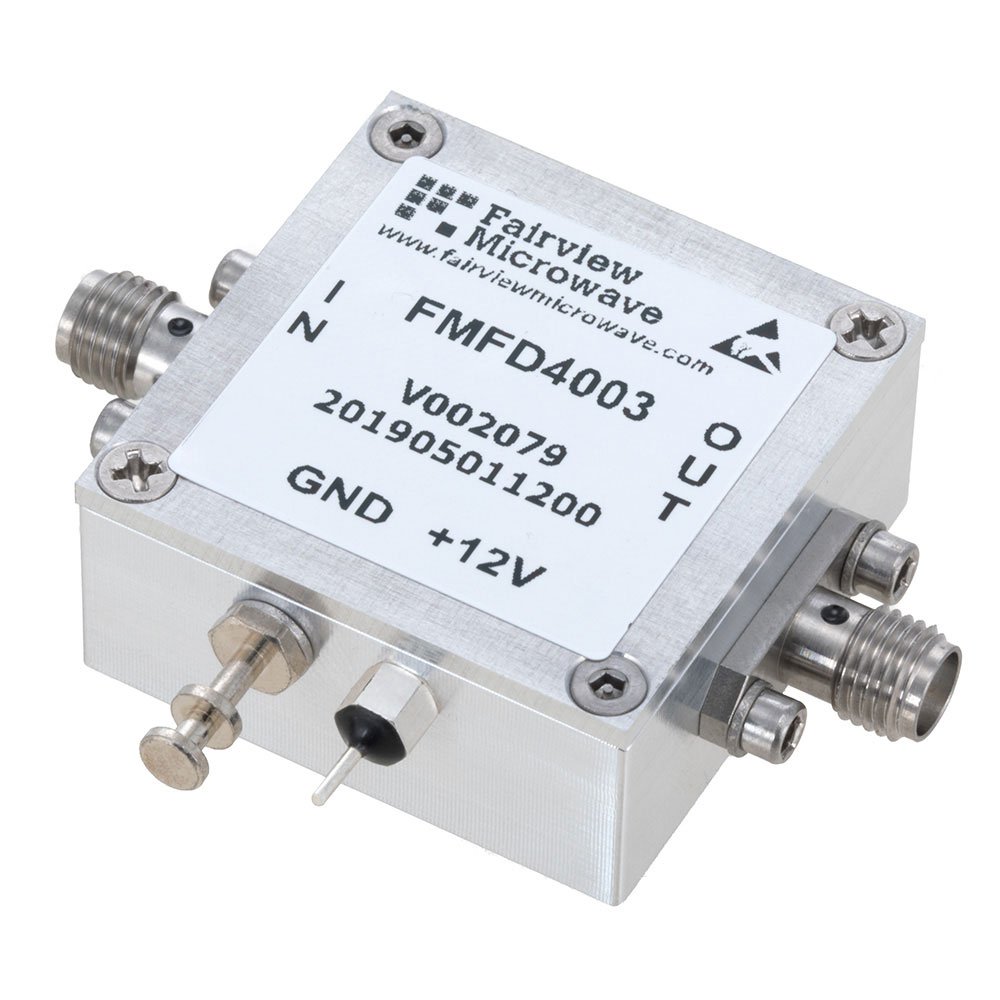

The FMFD4003 is a signal conditioning frequency divider module manufactured by Fairview Microwave. It functions as a divide-by-4 prescaler designed for high-frequency applications. The device operates within a frequency range of 100 MHz to 13 GHz, with specific operational bands noted at 25 MHz to 3.25 GHz and 100 MHz to 13 GHz. It utilizes SMA connectors for input and output interfaces. The unit is classified under wireless and RF modules or signal conditioning categories depending on the documentation source.

Feature Summary

• Divides input frequency by four
• Operates up to 13 GHz
• SMA connector interface

Applications

• RF signal processing systems
• Frequency synthesis circuits
• Test and measurement equipment

Procurement Notes

Verify availability through authorized distributors as stock status may vary. Confirm technical specifications against the official datasheet before integration. Ensure compatibility with system frequency requirements and connector types. Check for any regional shipping restrictions or supply limitations that may affect procurement timelines.

Selection Notes

Select this component when a divide-by-4 frequency division function is required in the 100 MHz to 13 GHz range. Consider the SMA interface compatibility with existing circuitry. Evaluate thermal management needs if operating at higher frequencies or power levels. Compare performance metrics with alternative dividers if broader bandwidth or different gain characteristics are needed.

Part Context

This part belongs to Fairview Microwave's line of RF modules and signal conditioning components. It complements other frequency-related devices such as amplifiers and dividers within the manufacturer's portfolio. The product supports various wireless and communication system designs requiring precise frequency manipulation.
