Product Detailed Parameters
- Description：FREQ DIVIDER SMA 100MHZ-15GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Prescaler
- Frequency：11MHz ~ 1.667GHz, 100MHz ~ 15GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

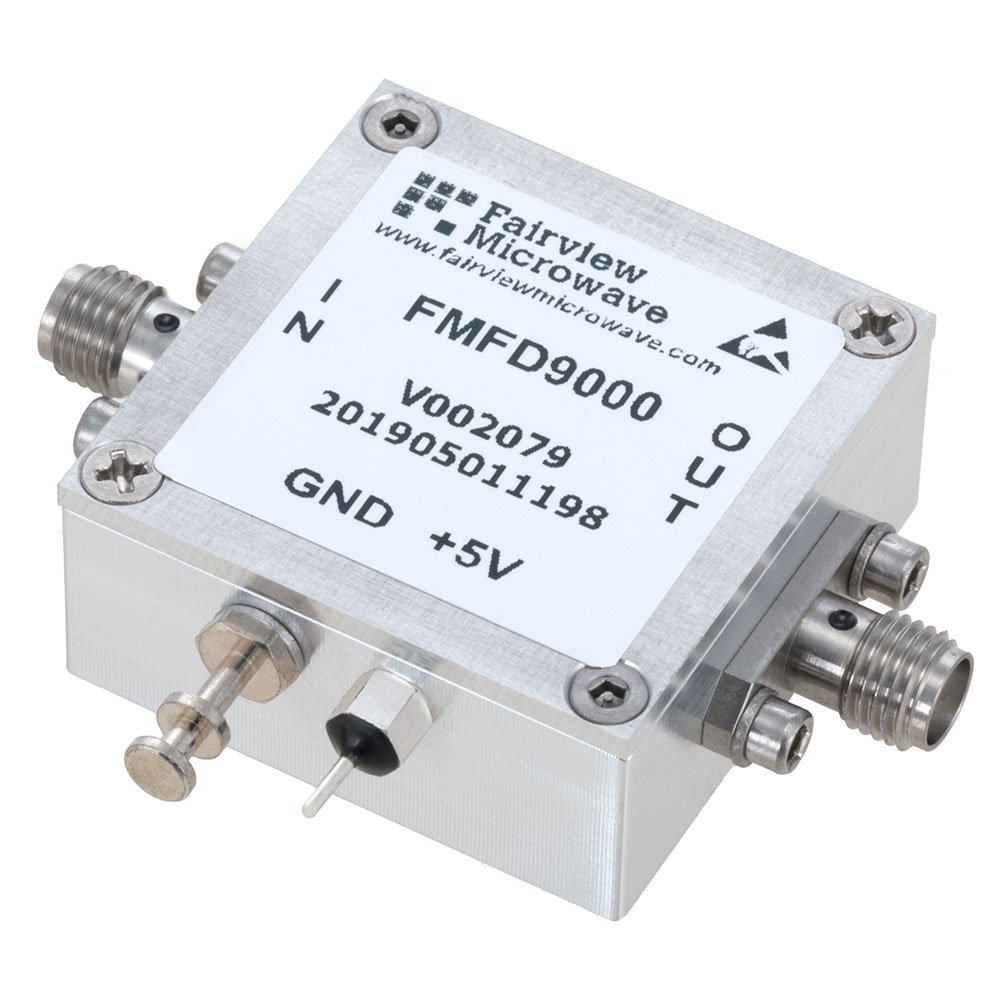

The FMFD9000 is a prescaler module manufactured by Fairview Microwave, designed for signal conditioning applications. It operates as a divide-by-4 frequency divider with an input frequency range of 100 MHz to 15 GHz and an output range of 11 MHz to 1.667 GHz. The component utilizes SMA connectors for interface connectivity and is housed in a general-purpose RF module configuration suitable for microwave systems.
Feature Summary
- Divides input frequency by four
- Supports high-frequency operation up to 15 GHz
- Utilizes SMA connector interfaces
Applications
- Microwave signal processing systems
- Frequency synthesis circuits
- RF test and measurement equipment
Procurement Notes
Verify the specific datasheet version for the FMFD9000 to confirm exact electrical tolerances and pinout configurations before integration. Ensure that the SMA connector gender and mating requirements align with the system design. Cross-reference the manufacturer's documentation for any updates regarding RoHS compliance or material specifications to guarantee compatibility with existing assembly processes.
Selection Notes
Select this module when a divide-by-4 prescaling function is required within the 100 MHz to 15 GHz input spectrum. The SMA interface simplifies integration into standard RF setups. Consider the output frequency limit of 1.667 GHz to ensure downstream components can handle the divided signal without additional filtering or amplification stages.
Part Context
Fairview Microwave specializes in passive RF, microwave, and millimeter-wave components. The FMFD9000 belongs to their signal conditioning portfolio, providing essential frequency division capabilities for complex RF architectures. This module supports engineers in managing high-frequency signals where direct processing is impractical.
Replacement Considerations
No public substitute part numbers are documented for the FMFD9000. Verify functional equivalence carefully if considering alternatives from other manufacturers, specifically matching the divide-by-4 ratio and SMA interface specifications.
FAQ
What is the frequency division ratio of the FMFD9000?
The FMFD9000 functions as a divide-by-4 prescaler.
What type of connectors does the FMFD9000 use?
The module features SMA connectors for signal input and output.
