Product Detailed Parameters
- Description：LOWPASS FILTER SMA JACK 1 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：500MHz Center
- Bandwidth：1GHz
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.098" L x 0.752" W (27.90mm x 19.10mm)
- Height (Max)：0.598" (15.20mm)
Download product information
Overview

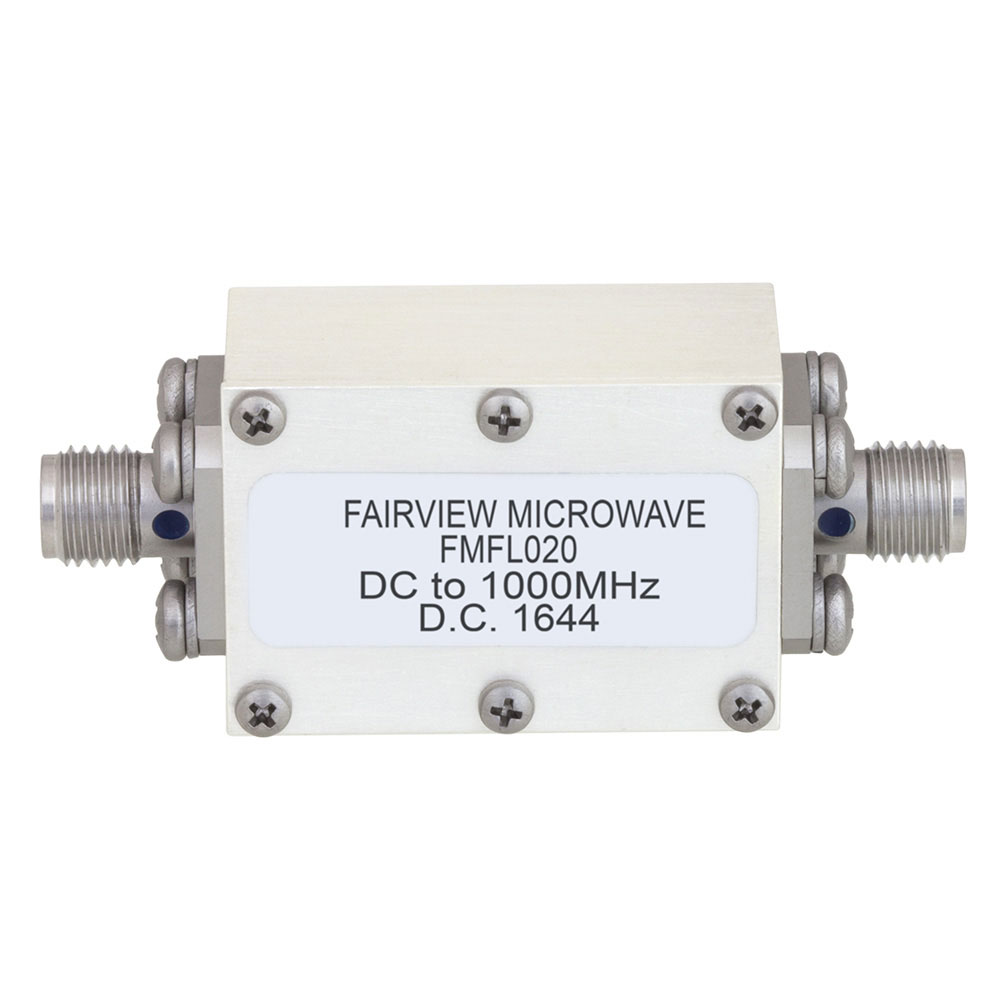

The FMFL020 is a lowpass filter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates from DC to 1,000 MHz and features SMA female connectors on both input and output ports. The unit is RoHS compliant and originates from the USA. This component serves as a passive RF filter intended to attenuate frequencies above the specified cutoff while passing lower frequency signals with minimal loss.
Feature Summary
- Provides lowpass filtering functionality within the DC to 1,000 MHz range
- Equipped with SMA female connectors for standard interfacing
Applications
- Signal conditioning in RF systems
- Frequency filtering in test and measurement equipment
- Baseband signal processing circuits
Procurement Notes
Verify the specific datasheet version and compliance certificates upon order confirmation. Confirm connector gender and interface compatibility with existing system requirements. Check for any regional shipping restrictions or lead time variations associated with the manufacturer's current production schedule before finalizing procurement plans.
Selection Notes
Select this component when a fixed lowpass characteristic up to 1 GHz is required. Ensure the SMA female interface matches the system cabling. Consider thermal management if operating near environmental limits, although no active cooling is specified. Validate insertion loss and stopband attenuation against specific application needs using the official technical documentation.
Part Context
This part belongs to the Fairview Microwave line of passive RF components. It is categorized under signal conditioning filters. The product is distinct from their amplifier and cable assembly lines, focusing specifically on frequency-selective signal transmission within the defined bandwidth constraints.
Replacement Considerations
No public substitute part numbers are documented for this specific model. Evaluate alternative lowpass filters with matching SMA female interfaces and similar DC to 1,000 MHz specifications if replacement is necessary.
