FMFL1000

Overview

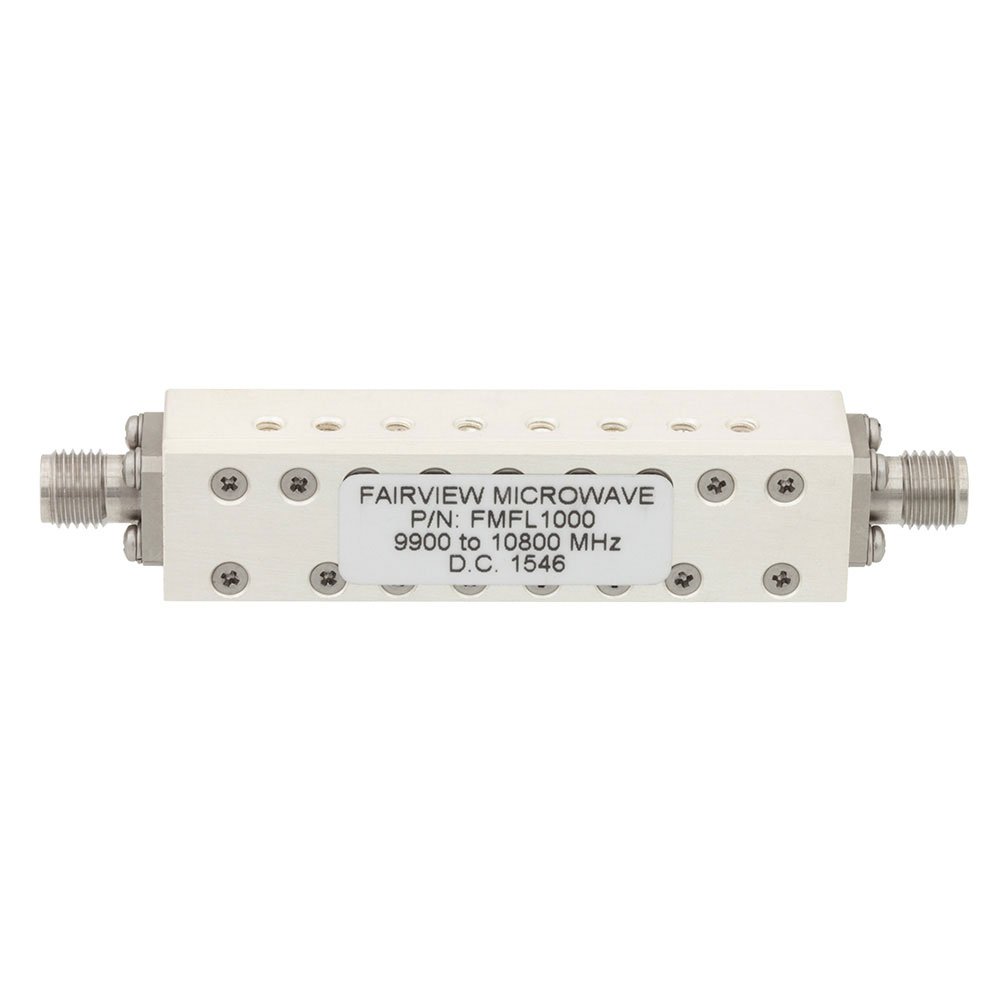

The FMFL1000 is a bandpass cavity filter manufactured by Fairview Microwave, designed for radio frequency applications. It operates with a center frequency of 10.35 GHz and provides a bandwidth of 900 MHz. The component features SMA connectors for interface connectivity and exhibits a 1 dB insertion loss characteristic within its operational range.

Feature Summary

• Utilizes cavity construction for stable RF filtering performance
• Provides precise bandpass characteristics centered at 10.35 GHz
• Equipped with SMA connectors for standard interfacing

Applications

• RF signal processing systems requiring specific frequency selection
• Communication equipment operating in the microwave spectrum
• Test and measurement instrumentation filters

Procurement Notes

Verify the exact datasheet specifications against current manufacturer documentation before integration. Confirm connector type compatibility and frequency range requirements match the system design. Ensure environmental conditions align with the component's operational limits to maintain performance integrity during deployment.

Selection Notes

Select this component when a fixed center frequency of 10.35 GHz with 900 MHz bandwidth is required. Consider the SMA interface for connection compatibility. Evaluate the 1 dB insertion loss impact on system sensitivity. Verify that the physical dimensions and mounting requirements fit the intended enclosure or chassis layout.

Part Context

This part belongs to the Fairview Microwave RF filters category, specifically within bandpass cavity filters. It serves as a passive component for frequency selection in high-frequency circuits. The product line focuses on providing reliable microwave components for various industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult the manufacturer for direct equivalents if replacement is necessary.
