Product Detailed Parameters
- Description：BANDPASS FILTER 10.7-12.2GHZ SMA
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：11.45GHz Center
- Bandwidth：1.5GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.441" L x 0.500" W (36.60mm x 12.70mm)
- Height (Max)：0.479" (12.15mm)
Download product information
Overview

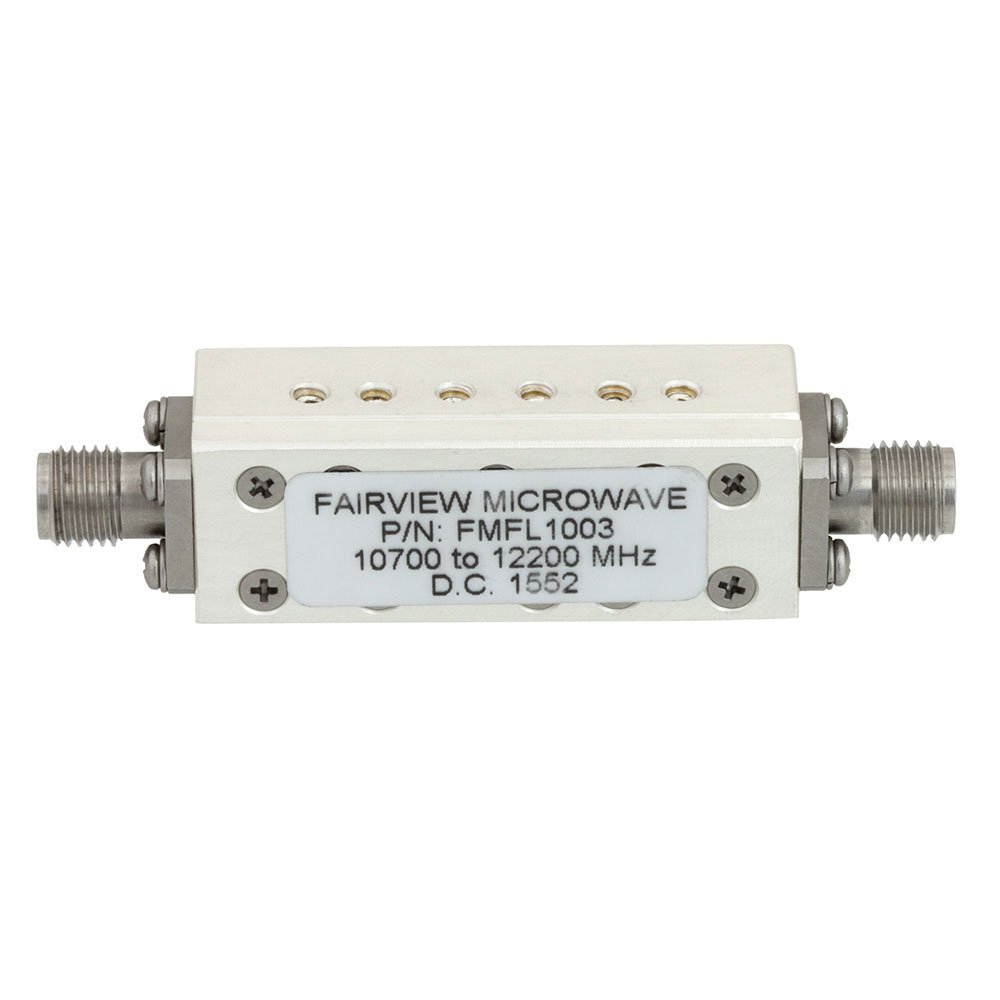

The FMFL1003 is a bandpass cavity filter manufactured by Fairview Microwave, designed for signal conditioning applications within the microwave frequency spectrum. It operates across a frequency range of 10.7 GHz to 12.2 GHz and utilizes SMA female connectors for interface compatibility. This component functions as a specialized RF filter intended to isolate specific frequency bands while attenuating out-of-band signals in high-frequency electronic systems.
Feature Summary
- Provides bandpass filtering capabilities within the specified microwave frequency range
- Utilizes SMA female connectors for standardized interface integration
- Constructed as a cavity filter for robust signal conditioning performance
Applications
- Microwave communication systems requiring precise frequency selection
- Signal conditioning circuits operating between 10.7 GHz and 12.2 GHz
- RF test and measurement equipment needing bandpass isolation
Procurement Notes
Verify the exact datasheet specifications directly from Fairview Microwave before integration. Confirm connector gender and mounting requirements match your system design. Ensure the operating frequency range aligns with your application needs. Check for any specific environmental ratings or handling instructions provided in the official documentation.
Selection Notes
Select this component when a fixed bandpass response is required between 10.7 GHz and 12.2 GHz. The SMA female interface dictates compatibility with existing cabling and fixtures. Consider the physical dimensions and mounting style if space constraints exist. Validate that the cavity construction meets the necessary power handling and thermal requirements for the target environment.
Part Context
This part belongs to Fairview Microwave's lineup of coaxial RF filter components. It serves as a specialized solution for applications demanding stable bandpass characteristics in the microwave domain. The product is categorized under signal conditioning filters, distinct from general-purpose passive components.
