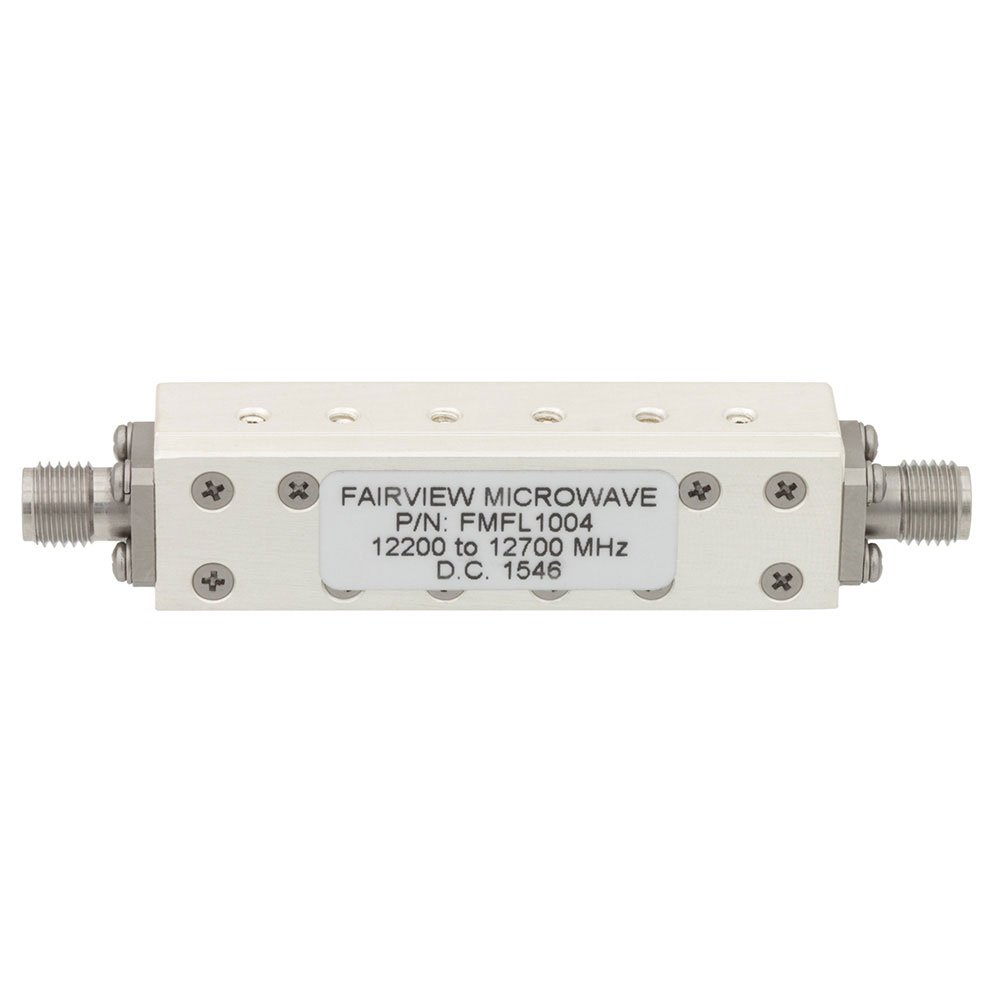

FMFL1004

$158.86

Description：BANDPASS FILTER 12.2-12.7GHZ SMA
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:ddd74a90e076 Category: RF Filters Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BANDPASS FILTER 12.2-12.7GHZ SMA
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：12.45GHz Center
Bandwidth：500MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1.5dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：1.929" L x 0.500" W (49.00mm x 12.70mm)
Height (Max)：0.479" (12.15mm)

Download product information

FMFL1004

Overview

The FMFL1004 is a bandpass filter manufactured by Fairview Microwave, designed for operation within the 12.2 GHz to 12.7 GHz frequency range. This component utilizes SMA connectors for signal interface and is categorized under RF filters in the manufacturer's product lineup. The unit is intended for applications requiring precise frequency selection in microwave systems.

Feature Summary

Provides frequency-selective filtering within the specified 12.2-12.7 GHz operational band
Features SMA connector interfaces for standard RF system integration

Applications

Microwave communication systems
RF signal processing equipment
Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet for the FMFL1004 to confirm detailed electrical performance characteristics such as insertion loss, return loss, and isolation levels. Ensure that the SMA connector gender and mating requirements align with the existing system infrastructure before procurement. Confirm availability status through authorized distributors as supply conditions may vary.

Selection Notes

Select the FMFL1004 when a fixed bandpass filter is required for the 12.2-12.7 GHz spectrum. Consider the SMA interface compatibility with downstream components. Evaluate if the fixed bandwidth meets the system spectral requirements compared to tunable alternatives. Verify mechanical constraints and mounting options for the specific application environment.

Part Context

This component belongs to the Fairview Microwave portfolio of RF and microwave passive components. It serves as a specialized filter solution for high-frequency applications, complementing their broader range of interconnects, antennas, and amplifiers. The part is designated for use in professional RF engineering contexts requiring stable frequency response.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult the official Fairview Microwave datasheet or contact technical support directly to identify compatible alternative models or cross-reference specifications for equivalent performance.
