FMFL1005

Overview

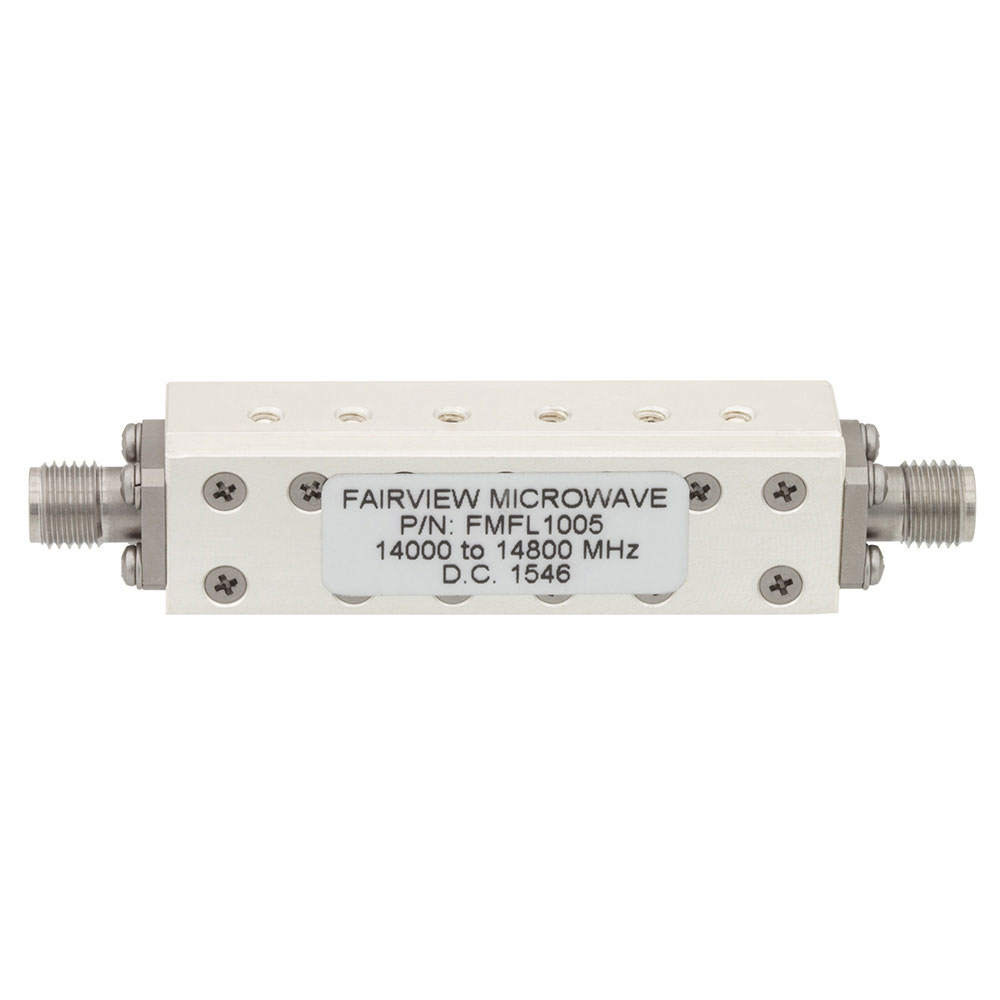

The FMFL1005 is a bandpass cavity filter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates within a frequency range of 14 GHz to 14.8 GHz, providing a center frequency of 14.4 GHz with an 800 MHz bandwidth. The component features SMA female connectors and exhibits a module insertion loss of 1.5 dB. Packaged in bags with a factory pack quantity of one, this unit serves as a specialized RF filter solution.

Feature Summary

• Bandpass cavity filter design for precise frequency selection
• SMA female connector interface for standard integration
• Operates within the 14 GHz to 14.8 GHz spectrum

Applications

• RF signal filtering in microwave communication systems
• Signal conditioning for high-frequency electronic circuits
• Base station equipment requiring specific bandpass characteristics

Procurement Notes

Verify the exact frequency range and connector type against the official datasheet before procurement. Confirm that the SMA female interface matches your system requirements. Check current availability status as distribution may be limited. Ensure the packaging specifications align with your handling procedures. Cross-reference the manufacturer part number to avoid substitution errors.

Selection Notes

Select this component when a fixed bandpass response between 14 GHz and 14.8 GHz is required. Consider the 1.5 dB insertion loss impact on system gain. Verify compatibility with SMA female ports in your assembly. Evaluate thermal management needs if operating at high power levels. Compare performance metrics against alternative filters if tighter bandwidth or lower loss is necessary.

Part Context

This model belongs to Fairview Microwave's bandpass filter product line, categorized under signal conditioning components. It is distinct from other models like FMFL005 which operate at lower frequencies. The FMFL1005 specifically targets higher microwave frequency applications compared to general-purpose filters.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Direct replacement requires matching the 14-14.8 GHz range and SMA female connectors exactly.
